Click Specification

Unit:mm

Round Nuts Slotted on Face

GOST 10657 - 1980

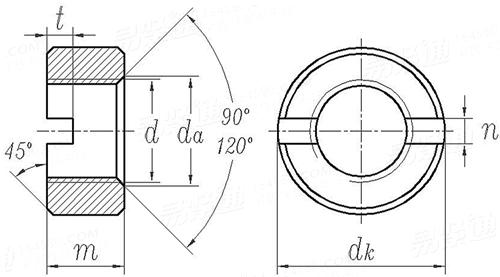

Display drawing:

俄标GOST 10657 - 1980 GOST10657 10657GOST Round Nuts Slotted on Face
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Thread Size
d
M1 M1.2 M1.4 M1.6 M2 M2.5 M3 M3.5 M4
P pitch Coarse thread
Fine thread
da min
max
dk min
max
m min
max
n Nominal Size
min
max
t min
max
per 1000 units≈kg
0.25 0.25 0.3 0.35 0.4 0.45 0.5 0.6 0.7
/ / / / / / / / /
1 1.2 1.4 1.6 2 2.5 3 3.45 4
1.15 1.4 1.6 1.84 2.3 2.9 3.5 4 4.6
2.25 2.75 2.75 3.2 4.2 5.2 5.7 6.64 7.64
2.5 3 3 3.5 4.5 5.5 6 7 8
0.75 0.95 1.15 1.35 1.75 1.95 2.25 2.75 3.2
1 1.2 1.4 1.6 2 2.2 2.5 3 3.5
0.3 0.4 0.4 0.5 1 1.2 1.2 1.4 1.4
0.36 0.46 0.46 0.56 1.06 1.26 1.26 1.46 1.46
0.5 0.6 0.6 0.7 1.2 1.51 1.51 1.71 1.71
0.3 0.4 0.5 0.6 0.8 0.9 1 1 1.2
0.5 0.6 0.7 0.8 1 1.1 1.2 1.4 1.6
0.033 0.056 0.063 0.066 0.146 0.256 0.414 - 1.04
Thread Size
d
M5 M6 M8 M10 M12 M14 M16 M18 M20
P pitch Coarse thread
Fine thread
da min
max
dk min
max
m min
max
n Nominal Size
min
max
t min
max
per 1000 units≈kg
0.8 1 1.25 1.5 1.75 2 2 2.5 2.5
/ / 1 1.25 1.25 1.5 1.5 1.5 1.5
5 6 8 10 12 14 16 18 20
5.75 6.75 8.75 10.8 13 15.1 17.3 19.5 21.6
8.64 10.57 13.57 17.57 20.48 23.48 25.48 28.48 31.38
9 11 14 18 21 24 26 29 32
3.9 4.7 6.14 7.64 9.64 10.57 11.57 12.57 13.57
4.2 5 6.5 8 10 11 12 13 14
2 2.5 3 3.5 4 4 4 4 5
2.06 2.56 3.06 3.57 4.07 4.07 4.07 4.07 5.07
2.31 2.81 3.31 3.87 4.37 4.37 4.37 4.37 5.37
1.5 2 2.5 3.2 3.8 3.8 3.8 4.8 4.8
1.9 2.4 3 3.7 4.3 4.3 4.3 5.5 5.5
1.83 2.53 5.26 11.03 21.06 - 36.27 - 56.32
