Click Specification

Unit:mm

B Type Square Nuts Box

QC /T 862 - 2011

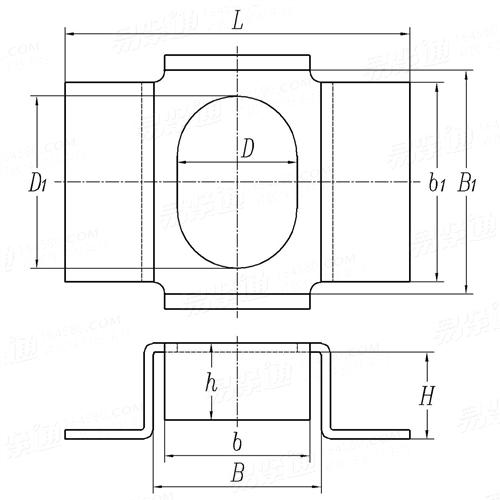

Display drawing:

汽标QC /T862 - 2011 QC862 862QC B Type Square Nuts Box
Screw Thread
d
M4 M5 M6 M8 M10 M12
B max
min
B1 max
min
H max
min
D max
min
D1
L
b
b1
h
8.45 9.45 12.55 15.55 18.55 21.65
7.55 8.55 11.45 14.45 17.45 20.35
13.05 14.55 16.55 20.65 24.65 27.65
11.95 13.45 15.45 19.35 23.35 26.35
4.48 5.48 6.48 7.58 9.58 11.7
4 5 6 7 9 11
6.15 7.18 9.18 11.22 13.22 15.22
5.85 6.82 8.82 10.78 12.78 14.78
10 11.5 13 16 19 21
30 30 34 38 38 42
6.5 7.5 10 13 16 19
10.5 12 14 18 22 25
3.5 4.5 5.5 6.5 8.5 10.5
