Half Round Nut

YJT 3027 (HRN)

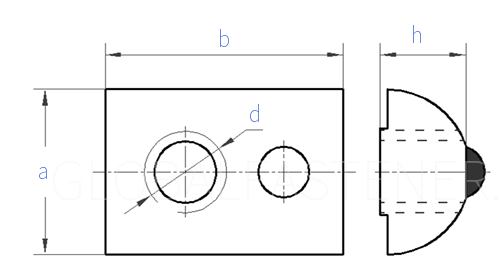

Display drawing:

企标YJT 3027 (HRN) YJT3027 3027YJT Half Round Nut
Part No.
4-6-20 5-6-20 4-8-30 5-8-30 6-8-30 4-8-40 5-8-40 6-8-40 8-8-40 6-10 8-10 6-10-45L 8-10-45L
d
a
b
h
-
M4 M5 M4 M5 M6 M4 M5 M6 M8 M6 M8 M6 M8
8 8 13 13 13 13.8 13.8 13.8 13.8 16 16 16 16
12.3 12.3 21 21 21 23 23 23 23 23 23 23 23
4 4 6.5 6.5 6.5 7.4 7.4 7.4 7.4 7.5 7.5 8.3 8.3
20 20 30 30 30 40 40 40 40 45/50/60 45/50/60 45L 45L
