Click Specification

Unit:mm

Triangle Nuts for Non-Sparking & Explosion Gun Tools

CNS 5405 - 1980

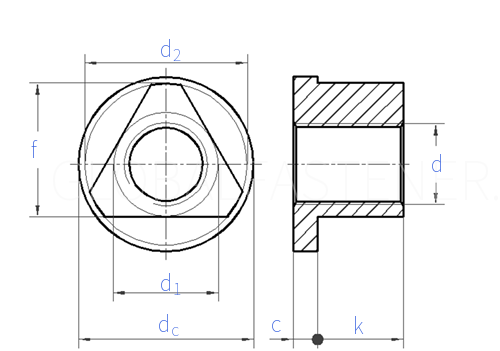

Display drawing:

台湾CNS 5405 - 1980 CNS5405 5405CNS Triangle Nuts for Non-Sparking & Explosion Gun Tools
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Screw Thread
d
M4 M5 M6 M8 M10 M12 M16 M20
c
dc
d2
d1 max=nominal size
min
f max=nominal size
min
k
per 1000 units≈kg steel
brass
2 2 2 2.3 2.8 3.5 4 5
8.5 10 12 15 18 28 35 42
7.5 9.5 11.5 14 17 24 30 36
5.5 6.5 8 9.5 12 16 20 24
5.3 6.3 7.8 9.3 11.8 15.7 19.7 23.7
6.5 8 9.75 11.75 14.5 20 25 30
6.4 7.9 9.65 11.65 14.4 19.85 24.85 29.85
3 4 4.5 6 7.5 11.5 14 17
1.31 2.04 3.26 5.55 10.2 33.6 58.6 100
1.42 2.21 3.54 6.02 11.1 36.4 63.5 108
