Click Specification

Unit:mm

Non-metallic Flat Gaskets for use with Steel Pipe Flanges - Type FF

HG /T 20606 (FF) - 2009

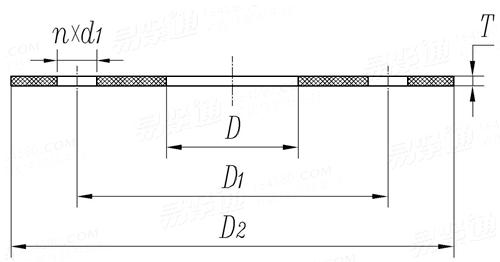

Display drawing:

化工HG /T20606 (FF) - 2009 HG20606 20606HG Non-metallic Flat Gaskets for use with Steel Pipe Flanges - Type FF
Nominal Diameter
DN
10 15 20 25 32 40 50 65 80 100 125 150 200 250 300
D ①
D2 PN2.5、PN6
PN10
PN16
n PN2.5、PN6
PN10
PN16
d1 PN2.5、PN6
PN10
PN16
D1 PN2.5、PN6
PN10
PN16
T
18 22 27 34 43 49 61 77 89 115 141 169 220 273 324
75 80 90 100 120 130 140 160 190 210 240 265 320 375 440
90 95 105 115 140 150 165 185 200 220 250 285 340 395 445
90 95 105 115 140 150 165 185 200 220 250 285 340 405 460
4 4 4 4 4 4 4 4 4 4 8 8 8 12 12
4 4 4 4 4 4 4 8 8 8 8 8 8 12 12
4 4 4 4 4 4 4 8 8 8 8 8 12 12 12
11 11 11 11 14 14 14 14 18 18 18 18 18 18 22
14 14 14 14 18 18 18 18 18 18 18 22 22 22 22
14 14 14 14 18 18 18 18 18 18 18 22 22 26 26
50 55 65 75 90 100 110 130 150 170 200 225 280 335 395
60 65 75 85 100 110 125 145 160 180 210 240 295 350 400
60 65 75 85 100 110 125 145 160 180 210 240 295 355 410
1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
Nominal Diameter
DN
350 400 450 500 600 700 800 900 1000 1200 1400 1600 1800 2000
D ①
D2 PN2.5、PN6
PN10
PN16
n PN2.5、PN6
PN10
PN16
d1 PN2.5、PN6
PN10
PN16
D1 PN2.5、PN6
PN10
PN16
T
377 426 480 530 630 720 820 920 1020 1220 1422 1626 1829 2032
490 540 595 645 755 / / / / / / / / /
505 565 615 670 780 895 1015 1115 1230 1455 1675 1915 2115 2325
520 580 640 715 840 910 1025 1125 1255 1485 1685 1930 2130 2345
12 16 16 20 20 / / / / / / / / /
16 16 20 20 20 24 24 28 28 32 36 40 44 48
16 16 20 20 20 24 24 28 28 32 36 40 44 48
22 22 22 22 26 / / / / / / / / /
22 26 26 26 30 30 33 33 36 39 42 48 48 48
26 30 30 33 36 36 39 39 42 48 48 56 56 62
445 495 550 600 705 / / / / / / / / /
460 515 565 620 725 840 950 1050 1160 1380 1590 1820 2020 2230
470 525 585 650 770 840 950 1050 1170 1390 1590 1820 2020 2230
3 3 3 3 3 3 3 3 3 3 3 3 3 3
