Stainless Steel Clamp Pipe Couplings for the Food Industry - Gasket

ISO 2852 (T3) - 1993

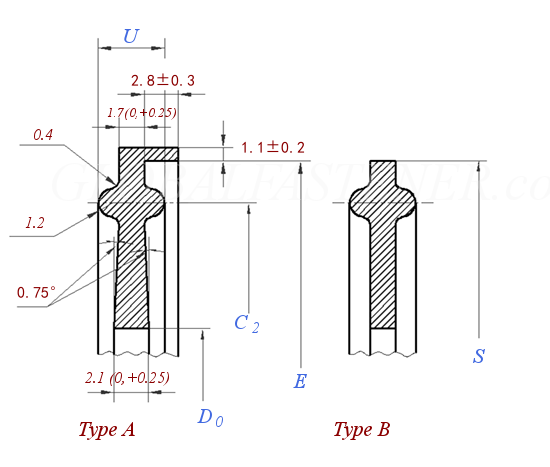

Display drawing:

国际ISO 2852 (T3) - 1993 ISO2852 2852ISO Stainless Steel Clamp Pipe Couplings for the Food Industry - Gasket
国际ISO 2852 (T3) - 1993 ISO2852 2852ISO Stainless Steel Clamp Pipe Couplings for the Food Industry - Gasket
Nominal Diameter
12 12.7 17.2 21.3 25 33.7 38 40 51
D0 min=nominal size
max
C2 max=nominal size
min
E max=nominal size
min
S ±0.5
U ±0.2
10.2 10.9 15.4 19.5 22.8 31.5 35.8 37.8 48.8
10.7 11.4 15.9 20 23.3 32 36.3 38.3 49.3
27.5 27.5 27.5 27.5 43.5 43.5 43.5 56.5 56.5
27 27 27 27 43 43 43 56 56
34 34 34 34 50.5 50.5 50.5 64 64
33.5 33.5 33.5 33.5 50 50 50 63.5 63.5
34 34 34 34 50.5 50.5 50.5 64 64
5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5
Nominal Diameter
63.5 70 76.1 88.9 101.6 114.3 139.7 168.3 219.1
D0 min=nominal size
max
C2 max=nominal size
min
E max=nominal size
min
S ±0.5
U ±0.2
60.5 67 73.1 85.1 97.8 110.5 135.9 163.3 214.1
61 67.5 73.6 85.6 98.3 111 136.4 163.8 214.6
70.5 83.5 83.5 97 110 122 146 174 225
70 83 83 96.5 109.5 121.5 145.5 173.5 224.5
77.5 91 91 106 119 130 155 183 233.5
77 90.5 90.5 105.5 118.5 129.5 154.5 182.5 233
77.5 91 91 106 119 130 155 183 233.5
5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5
