Click Specification

Unit:mm

HB 5955 - 1986

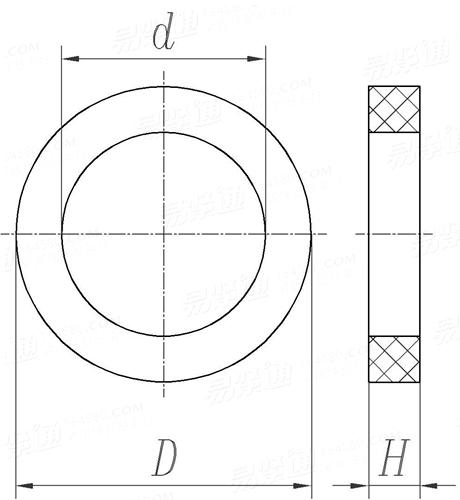

Display drawing:

航空HB 5955 - 1986 HB5955 5955HB
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Size
3 4 5 6 8 10 12 14 16 18 20 22 24 27 30
d max=nominal size
min
D max=nominal size
min
H min=nominal size
max
per 1000 units≈kg
2.5 3.3 4.2 5 6.8 8.5 10.5 12.5 14.5 16.5 18.5 20.5 22.5 25.5 28.5
2.3 3.1 4 4.8 6.6 8.3 10.3 12.3 14.3 16.3 18.3 20.3 22.3 25.3 28.3
3.8 5.3 6.3 8.3 10.1 13 16 18 20 23 25 27 30 35 38
3.6 5.1 6.1 8.1 9.9 12.8 15.8 17.8 19.8 22.8 24.8 26.8 29.8 34.8 37.8
1 1.4 1.6 2 2.5 3 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8
1.15 1.55 1.75 2.15 2.65 3.15 3.95 3.95 3.95 3.95 3.95 3.95 3.95 3.95 3.95
0.007 0.02 0.03 0.07 0.12 0.32 0.48 0.56 0.63 0.85 0.94 1.03 1.31 2 2.11
