Nominal Diameter
D
10
×25
10
×32
10
×38
10
×44
10
×51
10
×64
10
×76
10
×305
12.5
×25
12.5
×32
12.5
×38
12.5
×44
12.5
×51
12.5
×64

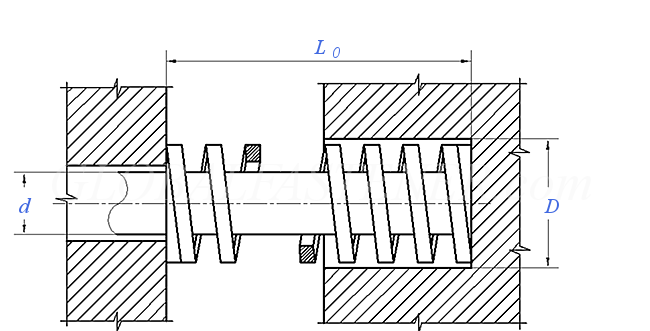

L0 Free length
D Hole diameter min=nominal size
max
d Rod diameter max=nominal size
min
Spring rate ±10%,N
Maximum operating deflection 40%L0
Force at maximum operating deflection,N
25 32 38 44 51 64 76 305 25 32 38 44 51 64
10 10 10 10 10 10 10 10 12.5 12.5 12.5 12.5 12.5 12.5
10.58 10.58 10.58 10.58 10.58 10.58 10.58 10.58 13.2 13.2 13.2 13.2 13.2 13.2
5 5 5 5 5 5 5 5 6.3 6.3 6.3 6.3 6.3 6.3
4.52 4.52 4.52 4.52 4.52 4.52 4.52 4.52 5.72 5.72 5.72 5.72 5.72 5.72
11 8.5 6.8 6 5 4.1 3.6 0.9 21 16.4 13.6 12.1 10.3 7.6
10 12.8 15.2 17.6 20.4 25.6 30.4 122 10 12.8 15.2 17.6 20.4 25.6
110 108.8 103.4 105.6 102 105 109.4 109.8 210 209.9 206.7 213 210.1 194.6
Nominal Diameter
D
12.5
×76
12.5
×89
12.5
×305
16
×25
16
×32
16
×38
16
×44
16
×51
16
×64
16
×76
16
×89
16
×102
16
×305
20
×25
L0 Free length
D Hole diameter min=nominal size
max
d Rod diameter max=nominal size
min
Spring rate ±10%,N
Maximum operating deflection 40%L0
Force at maximum operating deflection,N
76 89 305 25 32 38 44 51 64 76 89 102 305 25
12.5 12.5 12.5 16 16 16 16 16 16 16 16 16 16 20
13.2 13.2 13.2 16.7 16.7 16.7 16.7 16.7 16.7 16.7 16.7 16.7 16.7 20.84
6.3 6.3 6.3 8 8 8 8 8 8 8 8 8 8 10
5.72 5.72 5.72 7.42 7.42 7.42 7.42 7.42 7.42 7.42 7.42 7.42 7.42 9.42
6.3 5.4 1.6 29 22.9 19.3 17.1 14 10.7 9 7.3 6.8 2.3 55.8
30.4 35.6 122 10 12.8 15.2 17.6 20.4 25.6 30.4 35.6 40.8 122 10
191.5 192.2 195.2 290 293.1 293.4 301 285.6 273.9 273.6 259.9 277.4 280.6 558
Nominal Diameter
D
20
×32
20
×38
20
×44
20
×51
20
×64
20
×76
20
×89
20
×102
20
×115
20
×127
20
×139
20
×152
20
×305
25
×25
L0 Free length
D Hole diameter min=nominal size
max
d Rod diameter max=nominal size
min
Spring rate ±10%,N
Maximum operating deflection 40%L0
Force at maximum operating deflection,N
32 38 44 51 64 76 89 102 115 127 139 152 305 25
20 20 20 20 20 20 20 20 20 20 20 20 20 25
20.84 20.84 20.84 20.84 20.84 20.84 20.84 20.84 20.84 20.84 20.84 20.84 20.84 25.84
10 10 10 10 10 10 10 10 10 10 10 10 10 12.5
9.42 9.42 9.42 9.42 9.42 9.42 9.42 9.42 9.42 9.42 9.42 9.42 9.42 11.8
45 36 30 24.5 19.2 16 14 12 10.9 9.5 8.4 7.5 4 105
12.8 15.2 17.6 20.4 25.6 30.4 35.6 40.8 46 50.8 55.6 60.8 122 10
576 547.2 528 499.8 491.5 486.4 498.4 489.6 501.4 482.6 467 456 488 1050
Nominal Diameter
D
25
×32
25
×38
25
×44
25
×51
25
×64
25
×76
25
×89
25
×102
25
×115
25
×127
25
×139
25
×152
25
×178
25
×203
L0 Free length
D Hole diameter min=nominal size
max
d Rod diameter max=nominal size
min
Spring rate ±10%,N
Maximum operating deflection 40%L0
Force at maximum operating deflection,N
32 38 44 51 64 76 89 102 115 127 139 152 178 203
25 25 25 25 25 25 25 25 25 25 25 25 25 25
25.84 25.84 25.84 25.84 25.84 25.84 25.84 25.84 25.84 25.84 25.84 25.84 25.84 25.84
12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5
11.8 11.8 11.8 11.8 11.8 11.8 11.8 11.8 11.8 11.8 11.8 11.8 11.8 11.8
80.3 62 52.9 44 35.2 28 24 21.1 18.7 16.7 15.3 14 12.5 10.4
12.8 15.2 17.6 20.4 25.6 30.4 35.6 40.8 46 50.8 55.6 60.8 71.2 81.2
1027.8 942.4 931 897.6 901.1 851.2 854.4 860.9 860.2 848.4 850.7 851.2 890 844.5
Nominal Diameter
D
25
×305
32
×38
32
×44
32
×51
32
×64
32
×76
32
×89
32
×102
32
×115
32
×127
32
×139
32
×152
32
×178
32
×203
L0 Free length
D Hole diameter min=nominal size
max
d Rod diameter max=nominal size
min
Spring rate ±10%,N
Maximum operating deflection 40%L0
Force at maximum operating deflection,N
305 38 44 51 64 76 89 102 115 127 139 152 178 203
25 32 32 32 32 32 32 32 32 32 32 32 32 32
25.84 33 33 33 33 33 33 33 33 33 33 33 33 33
12.5 16 16 16 16 16 16 16 16 16 16 16 16 16
11.8 15.3 15.3 15.3 15.3 15.3 15.3 15.3 15.3 15.3 15.3 15.3 15.3 15.3
7 98 79.5 67 53 44 37.2 32 29 25 23 21.5 18.2 15.8
122 15.2 17.6 20.4 25.6 30.4 35.6 40.8 46 50.8 55.6 60.8 71.2 81.2
854 1490 1399 1367 1357 1338 1324 1306 1334 1270 1279 1307 1296 1283
Nominal Diameter
D
32
×254
32
×305
40
×51
40
×64
40
×76
40
×89
40
×102
40
×115
40
×127
40
×139
40
×152
40
×178
40
×203
40
×254
L0 Free length
D Hole diameter min=nominal size
max
d Rod diameter max=nominal size
min
Spring rate ±10%,N
Maximum operating deflection 40%L0
Force at maximum operating deflection,N
254 305 51 64 76 89 102 115 127 139 152 178 203 254
32 32 40 40 40 40 40 40 40 40 40 40 40 40
33 33 41 41 41 41 41 41 41 41 41 41 41 41
16 16 20 20 20 20 20 20 20 20 20 20 20 20
15.3 15.3 19.16 19.16 19.16 19.16 19.16 19.16 19.16 19.16 19.16 19.16 19.16 19.16
12.5 10.3 92 73 63 51 45 39.6 36 32 28 25.2 21.8 17
102 122 20.4 25.6 30.4 35.6 40.8 46 50.8 55.6 60.8 71.2 81.2 102
1275 1257 1877 1869 1915 1816 1816 1822 1829 1779 1702 1794 1770 1734
Nominal Diameter
D
40
×305
50
×64
50
×76
50
×89
50
×102
50
×115
50
×127
50
×139
50
×152
50
×178
50
×203
50
×254
50
×305
63
×76
L0 Free length
D Hole diameter min=nominal size
max
d Rod diameter max=nominal size
min
Spring rate ±10%,N
Maximum operating deflection 40%L0
Force at maximum operating deflection,N
305 64 76 89 102 115 127 139 152 178 203 254 305 76
40 50 50 50 50 50 50 50 50 50 50 50 50 63
41 51 51 51 51 51 51 51 51 51 51 51 51 64.2
20 25 25 25 25 25 25 25 25 25 25 25 25 38
19.16 24.16 24.16 24.16 24.16 24.16 24.16 24.16 24.16 24.16 24.16 24.16 24.16 37
14.8 156 125 109 94 81 71 66.5 60 52 44 35 28.5 189
122 25.6 30.4 35.6 40.8 46 50.8 55.6 60.8 71.2 81.2 102 122 30.4
1806 3994 3800 3880 3835 3726 3607 3697 3648 3702 3573 3570 3477 5746
Nominal Diameter
D
63
×89
63
×102
63
×115
63
×127
63
×152
63
×178
63
×203
63
×254
63
×305
L0 Free length
D Hole diameter min=nominal size
max
d Rod diameter max=nominal size
min
Spring rate ±10%,N
Maximum operating deflection 40%L0
Force at maximum operating deflection,N
89 102 115 127 152 178 203 254 305
63 63 63 63 63 63 63 63 63
64.2 64.2 64.2 64.2 64.2 64.2 64.2 64.2 64.2
38 38 38 38 38 38 38 38 38
37 37 37 37 37 37 37 37 37
158 131 116 103 84.3 71.5 61.7 47 38.2
35.6 40.8 46 50.8 60.8 71.2 81.2 102 122
5625 5345 5336 5232 5125 5091 5010 4794 4660
