Metric Grooved Pins, Half-length Centre Grooved, TYPE 43 [TABLE 4]

ASME/ANSI B 18.8.100M (B18.8.9M T4) - 2000 (R2005)

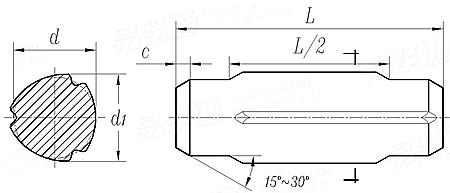

Display drawing:

美标ASME/ANSI B18.8.100M (B18.8.9M T4) - 2 Metric Grooved Pins, Half-length Centre Grooved, TYPE 43 [TABLE 4]
Nominal Length L Tips:seclect Nominal Length L and get .
Nominal Diameter
d
1.5 2 2.5 3 4 5 6 8 10 12
d max
min
c Ref.
d1 Tol.
1.5 2 2.5 3 4 5 6 8 10 12
1.46 1.96 2.46 2.96 3.925 4.925 5.925 7.91 9.91 11.89
0.2 0.25 0.3 0.4 0.5 0.63 0.8 0.8 0.8 0.8
0.04 0.05 0.05 0.07 0.07 0.07 0.07 0.08 0.08 0.1
d1
- - - - - - - - - -
