Click Specification

Unit:mm

HG /T 21629 (A16) - 2021

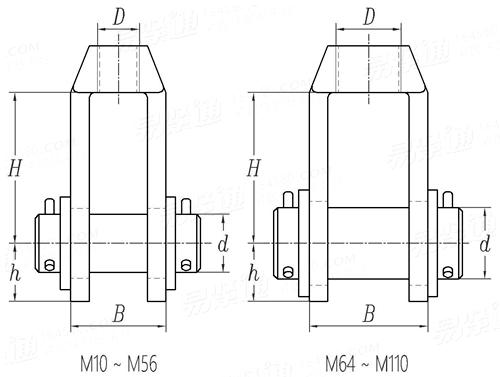

Display drawing:

化工HG /T21629 (A16) - 2021 HG21629 21629H
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Size
M10 M12 M16 M20 M24 M30 M36 M42
d
H
h
B
per unit≈kg
Allowable load/KN
φ12 φ16 φ20 φ24 φ30 φ36 φ42 φ48
50 55 60 65 80 95 110 120
13 15 20 25 30 35 40 50
35 38 44 61 70 85 93 114
0.25 0.3 0.51 1.22 2.12 3.09 5.02 8.19
3 5 10 17 24 39 60 84
Size
M48 M56 M64 M72 M80 M90 M100 M110
d
H
h
B
per unit≈kg
Allowable load/KN
φ56 φ64 φ72 φ80 φ90 φ100 φ110 φ125
130 150 150 160 170 180 200 220
60 65 70 80 90 100 110 120
136 154 160 152 166 186 206 226
12.55 17.56 35.6 39 53.1 72.3 96 128
123 175 230 300 380 495 620 760
