Click Specification

Unit:mm

Tested, Non-calibrated, Long-link Round Steel Chains

DIN 763 - 1990

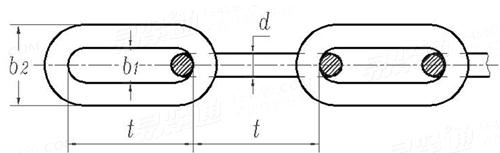

Display drawing:

德标DIN 763 - 1990 DIN763 763DIN Tested, Non-calibrated, Long-link Round Steel Chains
Nominal Diameter
d
4 5 6 7 8 10 13 16
d max
min
t Nominal Size
max
min
b1 min
b2 max
weight(kg/m)
4.2 5.25 6.3 7.35 8.4 10.5 13.65 16.8
3.8 4.75 5.7 6.65 7.6 9.5 12.35 15.2
32 35 42 49 52 65 82 100
33 36.1 43.3 50.5 53.6 67 84.5 103
31 33.9 40.7 47.5 50.4 63 79.5 97
7.2 9 10.8 12.6 14.4 18 23.4 28.8
16.8 21 25.2 29.4 33.6 42 54.6 67.2
0.27 0.43 0.63 0.86 1.1 1.75 2.95 4.45
