Hi-lock Bolts, Prodruding Head, Shear, Shank Tolerance f9

GJB 134.5 - 1986

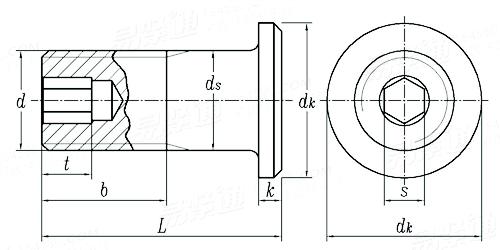

Display drawing:

军标GJB 134.5 - 1986 GJB134.5 134.5GJB Hi-lock Bolts, Prodruding Head, Shear, Shank Tolerance f9
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Nominal Diameter
d
M5 M6 M8 M10
P Thread Pitch
ds f9 Nominal Size
max
min
dk h12 max=nominal size
min
k max=nominal size
min
b Ref.
t min
s Nominal Size
max
min
0.8 1 1 1.25
5 6 8 10
4.990 5.990 7.987 9.987
4.960 5.960 7.951 9.951
8 9.5 12.2 15.5
7.850 9.350 12.020 15.320
1.5 1.8 2 2.3
1.3 1.6 1.8 2.1
7.5 8 11 12.5
2.5 3.2 4 5
2 2.5 3 4
2.06 2.58 3.1 4.12
2.02 2.52 3.02 4.03
