Cover Bolts, Square Neck

YJT 1046

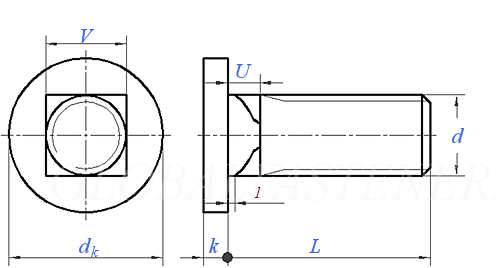

Display drawing:

标准YJT 1046 YJT1046 1046YJT Cover Bolts, Square Neck

Thread Size
d

M8

M10

M12

M14

P	pitch
L	Nominal Size
	max
	min
d_k	max=nominal size
d_k	min
k	Nominal Size
	max
	min
U	Nominal Size
	max
	min
V	Nominal Size
	max
	min

1.25	1.5	1.75	2
20	25	30	30
21.25	26.25	31.25	31.25
18.75	23.75	28.75	28.75
14	15.75	19	25
13.5	15.25	18.5	24.5
2.5	3	4	4.5
2.8	3.3	4.3	4.8
2.2	2.7	3.7	4.2
3	4	4.5	4.5
3.6	4.6	5.1	5.1
2.4	3.4	3.9	3.9
7.5	9.5	11.5	13.5
8	10	12	14
7	9	11	13
