Click Specification

Unit:mm

Countersunk (fiat) Head Tapping Rivets

UNI 7347 - 1974

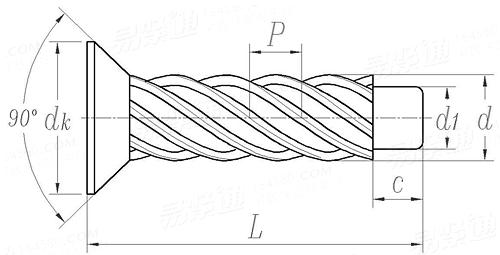

Display drawing:

意大利UNI 7347 - 1974 UNI7347 7347UNI Countersunk (fiat) Head Tapping Rivets
Size
1.5 1.9 2.5 2.9 3.5 3.9 4.2 4.5 5.3 6.1
dk max
min
d max
min
d1 max
min
P
2.5 3.6 4.1 5.35 6.6 7.25 7.85 9.1 10.3 11.6
2.36 3.42 3.92 5.17 6.38 7.03 7.63 8.88 10.03 11.33
1.52 1.9 2.54 2.94 3.55 3.91 4.24 4.62 5.38 6.14
1.44 1.82 2.46 2.85 3.46 3.81 4.1 4.49 5.23 5.99
1.24 1.6 2.1 2.43 2.94 3.2 3.45 3.8 4.5 5.13
1.17 1.52 2.03 2.33 2.84 3.1 3.35 3.7 4.39 5.02
0.628 0.838 0.785 1.08 1.3 1.26 1.33 1.5 1.73 1.78
