Click Specification

Unit:mm

Seating Bolts and Conical Spring Washers for Clamping

CNS 4421 - 1981

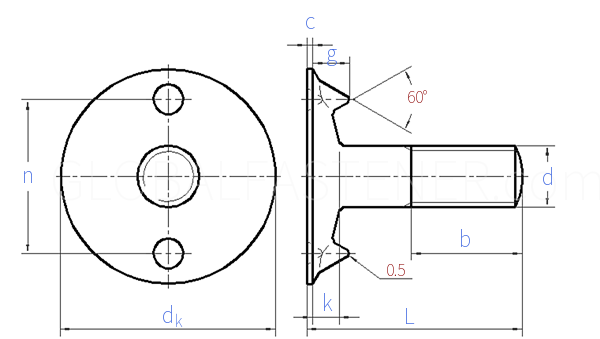

Display drawing:

台湾CNS 4421 - 1981 CNS4421 4421CNS Seating Bolts and Conical Spring Washers for Clamping
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight Thread length.
Thread Size
d
M6 M8 M10 M12
dk
n
k
c max
g
20 28 35 42
14 20 25 30
2.5 3.5 4.5 5.2
1 1 1 1.2
3.5 5 6 7
Weight of per 1000 steel products(≈kg)
- - - -
Length of Thread b
- - - -
