Double Head Bolt for Pipe (H16, PN320/260)

ZH 300 (H16-320/260) - 2009

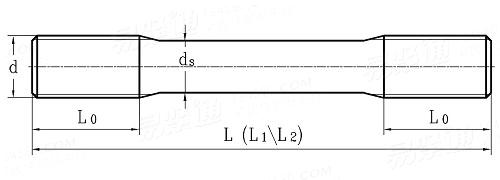

Display drawing:

浙工大ZH 300 (H16-320/260) - 2009 ZH300 300 Double Head Bolt for Pipe (H16, PN320/260)
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Diameter
DN
6 10 15 25 32 40 50 65 80 100
d
P
ds
L0
L
L1
L2
Code
per unit ≈ kg L
L1
L2
M14 M16 M16 M16 M20 M24 M27 M30 M33 M36
2 2 2 2 2.5 3 3 3.5 3.5 4
11 13 13 13 16.4 19.5 22.5 24.8 28 30
80 95 95 95 120 140 165 195 220 265
105 125 135 135 150 170 195 230 255 300
- 135 145 145 160 185 210 250 275 315
28 32 32 32 36 45 48 52 60 62
H16-0-1 H16-0-2 H16-0-2 H16-0-2 H16-0-3 H16-0-4 H16-0-5 H16-0-6 H16-0-7 H16-0-8
0.073 0.115 0.115 0.115 0.214 0.358 0.573 0.805 1.158 1.490
0.098 0.151 0.162 0.162 0.283 0.442 0.659 0.940 1.292 1.700
- 0.162 0.168 0.168 0.320 0.485 0.768 1.022 1.395 1.780
Nominal Diameter
DN
125 150 175 200 (225) 225 250 (275) 300
d
P
ds
L0
L
L1
L2
Code
per unit ≈ kg L
L1
L2
M39 M45 M48 M56 M48 M52 M56 M60 M64
4 4.5 5 5.5 5 5 5.5 4 4
33 38 40 48 40 45 48 50 58
275 315 380 415 415 475 510 515 585
315 350 410 450 455 515 545 545 620
330 370 430 470 475 535 565 565 640
65 75 80 95 80 90 95 54.5 105
H16-0-9 H16-0-10 H16-0-11 H16-0-13 H16-0-11 H16-0-12 H16-0-13 H16-0-15 H16-0-14
1.970 3.245 4.69 7.58 5.12 8.85 9.60 10.83 15.20
2.250 3.510 5.06 8.48 5.62 9.60 10.24 11.46 16.10
2.350 3.710 5.31 8.85 5.86 9.97 10.62 11.88 16.60
