Double End Studs

CNS 4609 - 1983

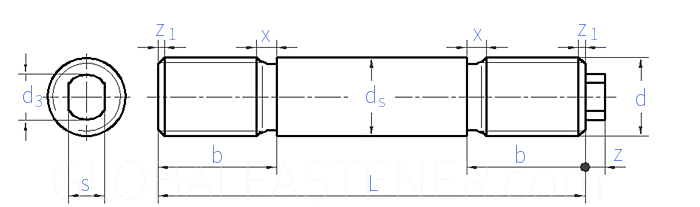

Display drawing:

台湾CNS 4609 - 1983 CNS4609 4609CNS Double End Studs
Screw Thread
d
M12 M16 M20 M24 M27 M30 M33 M36 M39 M42
P Pitch
b
ds
d3
s
z
1.75 2 2.5 3 3 3.5 3.5 4 4 4.5
21 25 30 36 38 42 44 50 52 57
12 16 20 24 27 30 33 36 39 42
8 12 14 14 18 18 25 25 28 28
7 10 11 11 13 13 22 22 24 24
4 5 6 6 6 6 9 9 10 10
Screw Thread
d
M45 M48 M52 M56 M60 M64 M72 M80 M90 M100
P Pitch
b
ds
d3
s
z
4.5 5 5 5.5 5.5 6 6 6 6 6
58 64 68 73 76 82 89 95 103 111
45 48 52 56 60 64 72 80 90 100
32 32 36 36 42 42 50 50 50 50
27 27 30 32 36 36 41 41 41 41
11 11 12 13 14 14 15 15 15 15
