Aerospace Series - Bolts, Large Bihexagonal Head, Close Tolerance Normal Shank, Medium Length Thread, in Heat Resisting Nickel Base Alloy, Passivated - Classfication: 1550 MPa (at Ambient Temperature)/315℃

EN 2874 - 1996

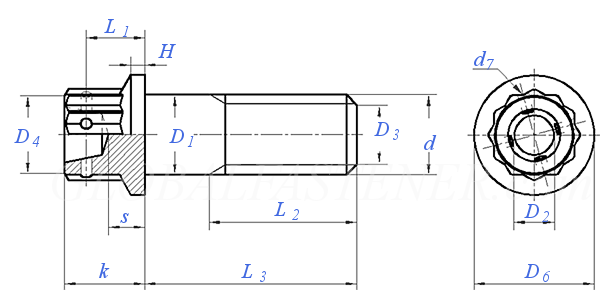

Display drawing:

欧标EN 2874 - 1996 EN2874 2874EN Aerospace Series - Bolts, Large Bihexagonal Head, Close Tolerance Normal Shank, Medium Length Thread, in Heat Resisting Nickel Base Alloy, Passivated - Classfication: 1550 MPa (at Ambient Temperature)/315℃
Thread Size
d
MJ5 MJ6 MJ7 MJ8 MJ10 MJ12 MJ14 MJ16 MJ18 MJ20 MJ22 MJ24
Code
P Pitch
Thread Tolerance
D1 Nominal Size
max
min
D2 max
min
D3 Nominal Size
max
min
D4 min
D6 max
d7 max
min
H min
k max
min
L2
L1
s max
min
050 060 070 080 100 120 140 160 180 200 220 240
0.8 1 1 1 1.25 1.25 1.5 1.5 1.5 1.5 1.5 2
4h6h 4h6h 4h6h 4h6h 4h6h 4h6h 4h6h 4h6h 4h6h 4h6h 4h6h 4h6h
5 6 7 8 10 12 14 16 18 20 22 24
4.99 5.99 6.987 7.987 9.987 11.984 13.984 15.984 17.984 19.98 21.98 23.98
4.978 5.978 6.972 7.972 9.972 11.966 13.966 15.966 17.966 19.959 21.959 23.959
3.5 4.2 4.9 5.5 7.1 8.7 11.3 12.9 15.5 17 19.6 22.2
2.5 3.2 3.9 4.5 6.1 7.7 10.3 11.9 14.5 16 18.6 21.2
3.4 4.2 5.2 6.2 7.9 9.8 11.5 13.5 15.5 17.5 19.5 20.9
3.9 4.7 5.7 6.7 8.4 10.3 12 14 16 18 20 21.4
2.9 3.7 4.7 5.7 7.4 9.3 11 13 15 17 19 20.4
6.8 7.8 8.8 9.8 11.8 13.7 16.7 18.6 21.6 23.6 26.6 29.6
10.3 11.8 13.3 14.8 18.3 22 25 28.5 31.5 34.5 37.5 40.5
1.14 1.54 1.54 1.54 1.74 1.74 1.74 1.74 1.74 1.74 1.74 1.74
1 1.4 1.4 1.4 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
1.5 1.7 1.9 2.1 2.5 2.9 3.3 3.7 4.1 4.5 4.9 5.3
7.4 8.4 9.2 9.8 11.6 12.9 14.3 15.8 17.1 18.6 19.9 21.9
6.82 7.82 8.62 9.22 10.9 12.2 13.6 15.1 16.4 17.76 19.06 21.06
12.5 15 16 17 21 23.5 27.5 30 33 35.5 38 43.5
5.3 6.1 6.7 7.2 8.5 9.6 10.8 12.4 13.9 15.3 16.8 18.3
3.7 4.2 4.6 5 5.9 6.8 7.5 8.8 9.8 10.9 12 13.1
3.3 3.8 4.2 4.6 5.5 6.4 7.1 8.4 9.4 10.5 11.6 12.7
