Aerospace - Bolts, Large Bihexagonal Head, Normal Shank, Short or Medium Length MJ Threads, Metallic Material, Coated or Uncoated, Strength Classes 1250 Mpa to 1800 Mpa

ISO 3186 - 2008

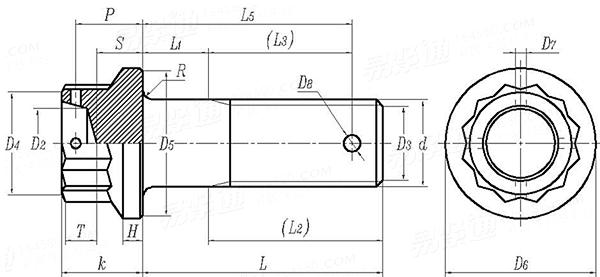

Display drawing:

国际ISO 3186 - 2008 ISO3186 3186ISO Aerospace - Bolts, Large Bihexagonal Head, Normal Shank, Short or Medium Length MJ Threads, Metallic Material, Coated or Uncoated, Strength Classes 1250 Mpa to 1800 Mpa
Thread Size
d
MJ5
×0.8-4h6h 		MJ6
×1-4h6h 		MJ7
×1-4h6h 		MJ8
×1-4h6h 		MJ10
×1.25-4h6h 		MJ12
×1.25-4h6h 		MJ14
×1.5-4h6h 		MJ16
×1.5-4h6h 		MJ18
×1.5-4h6h 		MJ20
×1.5-4h6h 		MJ22
×1.5-4h6h 		MJ24
×2-4h6h
Code
D2 max
min
D3 Nominal Size
max
min
D4 min
D5 min
D6 max
D7 max
min
D8 max
min
H min
k max
min
L1 ±0.2
L2 short
medium 1250MPa
＞1250MPa
L3 short
medium
P
R Nominal Size
s max
min
T min
050 060 070 080 100 120 140 160 180 200 220 240
3.5 4.2 4.9 5.5 7.1 8.7 11.3 12.9 15.5 17 19.6 22.2
2.5 3.2 3.9 4.5 6.1 7.7 10.3 11.9 14.5 16 18.6 21.2
3.4 4.2 5.2 6.2 7.9 9.8 11.5 13.5 15.5 17.5 19.5 20.9
3.9 4.7 5.7 6.7 8.4 10.3 12 14 16 18 20 21.4
2.9 3.7 4.7 5.7 7.4 9.3 11 13 15 17 19 20.4
6.8 7.8 8.8 9.8 11.8 13.7 16.7 18.6 21.6 23.6 26.6 29.6
9.5 11 12.5 14 17.3 20.9 23.9 27.4 30.4 33.4 36.4 39.4
10.3 11.8 13.3 14.8 18.3 22 25 28.5 31.5 34.5 37.5 40.5
1.14 1.54 1.54 1.54 1.74 1.74 1.74 1.74 1.74 1.74 1.74 1.74
1 1.4 1.4 1.4 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6
1.64 1.64 2.04 2.04 2.54 2.54 3.14 3.14 3.98 3.98 3.98 3.98
1.5 1.5 1.9 1.9 2.4 2.4 3 3 3.8 3.8 3.8 3.8
1.5 1.7 1.9 2.1 2.5 2.9 3.3 3.7 4.1 4.5 4.9 5.3
7.4 8.4 9.2 9.8 11.6 12.9 14.3 15.8 17.1 18.6 19.9 21.9
6.82 7.82 8.62 9.22 10.9 12.2 13.6 15.1 16.4 17.76 19.06 21.06
3~50 3~60 4~70 4~80 5~100 6~120 7~140 8~160 9~180 10~200 11~220 12~240
9 10 11 11.5 14.5 16 19 20.5 22.5 24.5 26 29.5
12 14 15 16.5 20.5 22.5 26 28.5 31 33.5 36 41
12.5 15 16 17 21 23.5 27.5 30 33 35.5 38 43.5
6 7 7 7.5 9 10 12 12.5 14.5 15 16 17.5
7.5 8.5 9.5 10.5 13 14.5 17 18.5 21 22.5 24 26.5
5.3 6.1 6.7 7.2 8.5 9.6 10.8 12.4 13.9 15.3 16.8 18.3
0.8 1 1 1 1.2 1.4 1.4 1.8 1.8 1.8 1.8 1.8
3.7 4.2 4.6 5 5.9 6.8 7.5 8.8 9.8 10.9 12 13.1
3.3 3.8 4.2 4.6 5.5 6.4 7.1 8.4 9.4 10.5 11.6 12.7
2.8 3.5 3.8 3.9 4.2 4.5 5.1 5.3 6.1 6.6 7.4 8.2
