Click Specification

Unit:mm

Aerospace Series - Bolts, Double Hexagon Head, Close Tolerance, Medium Thread Length, in Heat Resisting Nickel Base Alloy NIP100HT (lnconel 718), Uncoated - Classification: 1275 MPa/650

EN 3327 - 2008

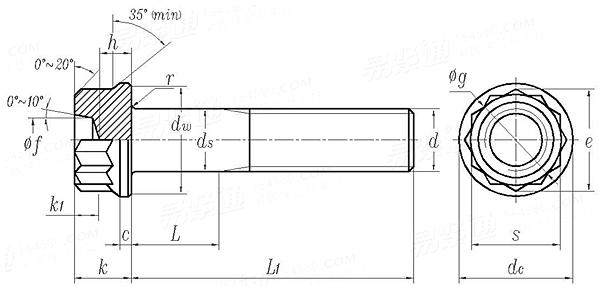

Display drawing:

欧标EN 3327 - 2008 EN3327 3327EN Aerospace Series - Bolts, Double Hexagon Head, Close Tolerance, Medium Thread Length, in Heat Resisting Nickel Base Alloy NIP100HT (lnconel 718), Uncoated - Classification: 1275 MPa/650
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Thread Size
d
MJ5
×0.8-4H6H 		MJ6
×1-4H6H 		MJ7
×1-4H6H 		MJ8
×1-4H6H 		MJ10
×1.25-4H6H 		MJ12
×1.25-4H6H
Code
ds Nominal Size
max
min
dc max
dw min
g min
c min
k max=nominal size
min
r max
min
s max
k1 min
h max
min
f max
min
050 060 070 080 100 120
5 6 7 8 10 12
4.99 5.99 6.987 7.987 9.987 11.984
4.978 5.978 6.972 7.972 9.972 11.966
9.1 10.6 12.1 13.6 16.7 19.9
8.3 9.8 11.3 12.8 15.7 18.8
6.8 7.8 8.8 9.8 11.8 13.7
1 1.2 1.4 1.6 2 2.4
5.5 6 6.5 7 8 9.2
5.02 5.52 5.92 6.42 7.42 8.62
0.5 0.7 0.7 0.7 0.8 0.9
0.3 0.5 0.5 0.5 0.6 0.6
7 8 9 10 12 14
2 2.3 2.6 2.8 3.1 3.5
2.9 3.2 3.7 4.1 5.1 6
2.5 2.8 3.3 3.7 4.7 5.6
3.7 4.6 5.4 5.7 7.2 8.5
3.2 4.1 4.9 5.2 6.7 8
L1
- - - - - -
Weight of per 1000 steel products(≈kg) 8.195kg/dm3
- - - - - -
