Click Specification

Unit:mm

HB 304 - 1987

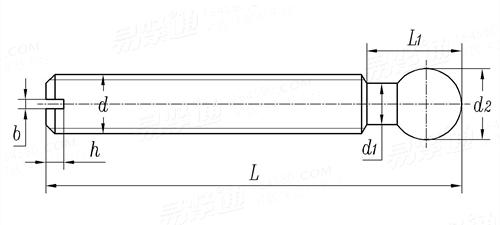

Display drawing:

航空HB 304 - 1987 HB304 304HB
Screw Thread
d
M8 M10 M12 M16
d2 max
min
L
d1
L1
b
h
10 12 14 16
9.91 11.89 13.89 15.89
60 70 80 100
6 7 9 12
14 16 19 22
1.2 1.6 2 2
2.5 3 3.5 4.5
