Grub Screws with Thrust Point

DIN 6332 - 2003

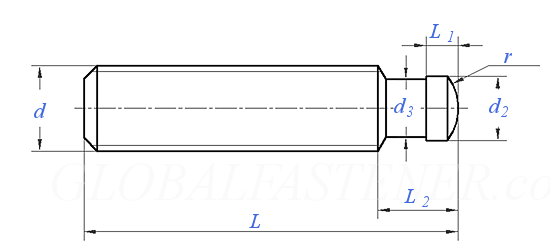

Display drawing:

德标DIN 6332 - 2003 DIN6332 6332DIN Grub Screws with Thrust Point
Download CAD Model
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Screw Thread
d
M6 M8 M10 M12 M16 M20
P Pitch
d2 max
min
d3 max
min
r
L2
L1
1 1.25 1.5 1.75 2 2.5
4.5 6 8 8 12 15.5
4.425 5.925 7.91 7.91 11.89 15.39
4 5.4 7.2 7.2 11 14.4
3.9 5.3 7.1 7.1 10.9 14.3
3 5 6 6 9 13
6 7.5 9 10 12 14
2.5 3 4.5 4.5 5 5.5
Weight of per 1000 steel products(≈kg)
- - - - - -
