Slotted Pan Head Set Screws with Dog Point

GB /T 828 - 1988

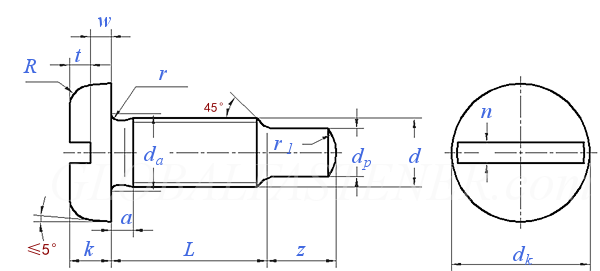

Display drawing:

国标GB /T828 - 1988 GB828 828GB Slotted Pan Head Set Screws with Dog Point
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Screw Thread
d
M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10
P Pitch
a max
dk max
min
da max
k max
min
n Nominal Size
max
min
dp max
min
t min
w min
R Ref.
r min
r1 ≈
z max
min
0.35 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5
0.7 0.8 0.9 1 1.4 1.6 2 2.5 3
3.2 4.0 5.0 5.6 8.0 9.5 12.0 16.0 20.0
2.9 3.7 4.7 5.3 7.64 9.14 11.57 15.57 19.48
2.1 2.6 3.1 3.6 4.7 5.7 6.8 9.2 11.2
1.0 1.3 1.5 1.8 2.4 3.0 3.6 4.8 6.0
0.85 1.1 1.3 1.6 2.2 2.8 3.3 4.5 5.7
0.4 0.5 0.6 0.8 1.2 1.2 1.6 2 2.5
0.6 0.7 0.8 1 1.51 1.51 1.91 2.31 2.81
0.46 0.56 0.66 0.86 1.26 1.26 1.66 2.06 2.56
0.8 1 1.5 2 2.5 3.5 4 5.5 7
0.55 0.75 1.25 1.75 2.25 3.2 3.7 5.2 6.64
0.35 0.5 0.6 0.7 1.0 1.2 1.4 1.9 2.4
0.3 0.4 0.5 0.7 1 1.2 1.4 1.9 2.4
0.5 0.6 0.8 0.9 1.2 1.5 1.8 2.4 3
0.1 0.1 0.1 0.1 0.2 0.2 0.25 0.4 0.4
1.12 1.4 2.1 2.8 3.5 4.9 5.6 7.7 9.8
1.5 2 2.5 3 4 5 6 8 10
1 1 1.2 1.5 2 2.5 3 4 5
Weight of per 1000 steel products(≈kg)
- - - - - - - - -
