Click Specification

(Non-preferred) dimensions in parentheses.

Unit:mm

Hexagon Head Set Screws with Dog Piont

CNS 4654 - 1983

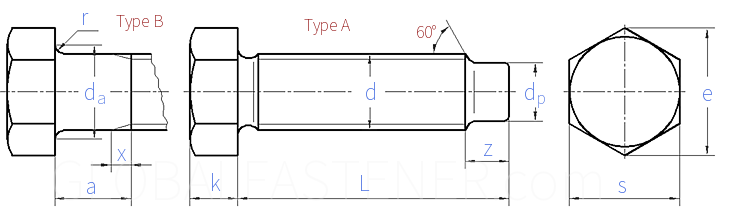

Display drawing:

台湾CNS 4654 - 1983 CNS4654 4654CNS Hexagon Head Set Screws with Dog Piont
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Screw Thread
d
M6 M8 M10 M12 M16 M20 M24 M30 M36 M42 M48 M56
P Pitch coarse thread
Fine thread
dp
e min
k
s
z
1 1.25 1.5 1.75 2 2.5 3 3.5 4 4.5 5 5.5
/ / / / / 2 2 2 3 3 3 4
4 5.5 7 8.5 12 15 18 23 28 32 38 45
8.87 11.05 14.38 18.9 21.1 26.75 33.53 39.98 51.28 61.31 72.61 83.9
5 6 7 9 11 14 17 21 25 30 34 40
8 10 13 17 19 24 30 36 46 55 65 75
3.5 5 5.5 7 9 9 11 14 14 18 18 18
Weight of per 1000 steel products(≈kg)
- - - - - - - - - - - -
