Click Specification

Unit:mm

Hexagon Head Wood Screws

UNI 704

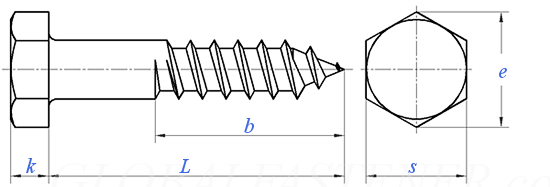

Display drawing:

意大利UNI 704 UNI704 704UNI Hexagon Head Wood Screws
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Screw Thread
d
5 6 8 10 12
P Pitch
s max
min
k
2 2.5 3 3.5 4
8 10 13 17 19
7.64 9.64 12.57 16.57 18.57
3.5 4 5.5 7 8
Weight of per 1000 steel products(≈kg)
- - - - -
Send Inquiry
