Click Specification

Unit:mm

Woodscrews-Hexagon Lag Screws - Symbol H

NF E 25-607 - 1985

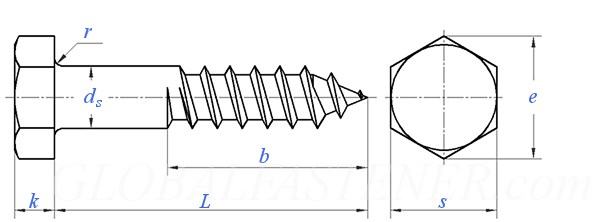

Display drawing:

法国NF E25-607 - 1985 NF25-607 25-607NF Woodscrews-Hexagon Lag Screws - Symbol H

Nominal Length L Tips:seclect Nominal Length L and get Thread length.

Screw Thread
d

5

6

7

8

10

12

14

16

18

20

P	Pitch
d_s	max
d_s	min
k	Nominal Size
	max
	min
s	max
s	min
e	min

2	2.5	3	3.5	4	4.5	5	6	7	7
5	6	7	8	10	12	14	16	18	20
4.52	5.52	6.42	7.42	9.42	11.3	13.3	15.3	17.3	19.16
3.5	4	5	5.3	6.4	7.5	8.8	10	11.5	12.5
3.88	4.38	5.38	5.68	6.85	7.95	9.25	10.75	12.4	13.4
3.12	3.62	4.62	4.92	5.95	7.05	8.35	9.25	10.6	11.6
8	10	11	13	17	19	22	24	27	30
7.64	9.64	10.57	12.57	16.57	18.16	21.16	23.16	26.16	29.16
8.6	10.8	11.9	14.2	18.7	20.5	23.9	26.1	29.5	32.9

Length of Thread b

-

-

-

-

-

-

-

-

-

-
