Metric Hexagon Lag Screws

ASME/ANSI B 18.2.3.8M - 1981 (R1999)

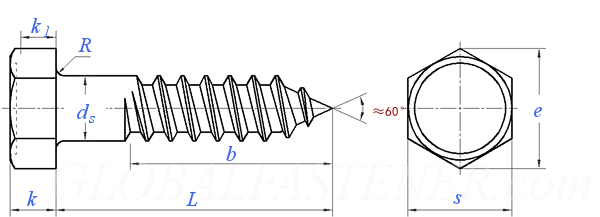

Display drawing:

Thread Size
d

P	pitch
d_s	max
d_s	min
s	max
s	min
e	max
e	min
k	max
k	min
k₁	min
R	max
R	min

2.3	2.5	2.8	3.6	4.2	5.1	5.6	7.3
5.48	6.48	8.58	10.58	12.7	16.7	20.84	24.84
4.52	5.52	7.42	9.42	11.3	15.3	19.16	23.16
8	10	13	16	18	24	30	36
7.64	9.64	12.57	15.57	17.57	23.16	29.16	35
9.24	11.55	15.01	18.48	20.78	27.71	34.64	41.57
8.63	10.89	14.2	17.59	19.85	26.17	32.95	39.55
3.9	4.4	5.7	6.9	8	10.8	13.4	15.9
3.1	3.6	4.9	5.9	7	9.3	11.6	14.1
2.4	2.8	3.7	4.5	5.2	7	8.8	10.5
0.6	0.9	1.2	1.2	1.8	1.8	2.4	2.4
0.2	0.3	0.4	0.4	0.6	0.6	0.8	0.8

①,Thread Length b . The minimum thread length shall be equal to one-half of the nominal screw length plus 12 mm, or 150 mm, whichever is shorter. Screws too short for the formula thread length shall be threaded as close to the head or shoulder as practicable.
