Click Specification

Unit:mm

Aerospace Series - Rivet, Universal Head, Close Tolerance - Inch Series

EN 6081 - 2022

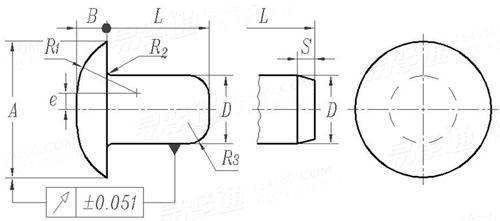

Display drawing:

欧标EN 6081 - 2022 EN6081 6081EN Aerospace Series - Rivet, Universal Head, Close Tolerance - Inch Series
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Code
2 3 4 5 6 7 8 10 12 3
X ① 		4
X ① 		5
X ① 		6
X ① 		6
Y ① 		7
X ①
D ±0.03
A max
min
B +0.25，0
e Ref.
R1
R2
R3 ±0.25
S ±0.25
1.58 2.38 3.18 3.97 4.76 5.56 6.36 7.93 9.53 2.78 3.58 4.37 5.16 5.56 5.96
3.35 4.95 6.58 8.18 9.78 11.41 13.01 16.21 18.6 4.95 6.58 8.18 9.78 9.78 11.41
3.05 4.65 6.22 7.82 9.42 10.99 12.59 15.79 18.11 4.65 6.22 7.82 9.42 9.42 10.99
0.7 1 1.4 1.7 2 2.4 2.7 3.4 4.1 1 1.4 1.7 2 2 2.4
0.4 0.6 0.8 1 1.2 1.4 1.6 2 2.4 0.6 0.8 1 1.2 1.2 1.4
1.4 2.1 2.7 3.4 4.2 4.9 5.5 6.9 8.3 2.1 2.7 3.4 4.2 4.2 4.9
0.1~0.15 0.1~0.15 0.1~0.15 0.1~0.15 0.1~0.15 0.1~0.15 0.1~0.15 0.1~0.15 0.1~0.15 0.1~0.15 0.1~0.15 0.1~0.15 0.1~0.15 0.1~0.15 0.1~0.15
0.48 0.74 0.99 1.24 1.5 1.75 1.98 2.49 2.97 0.74 0.99 1.24 1.5 1.5 1.75
0.41 0.58 0.79 0.99 1.19 1.37 1.57 1.98 2.39 0.58 0.79 0.99 1.19 1.19 1.37
Weight of per 1000 steel products(≈kg) Mass based on aluminium alloy with a density of 2,79 kg/dm3
- - - - - - - - - - - - - - -
①,Extra large rivet specifications.
