Click Specification

Unit:mm

Round Head Rivets

NF E 27-153 - 1952

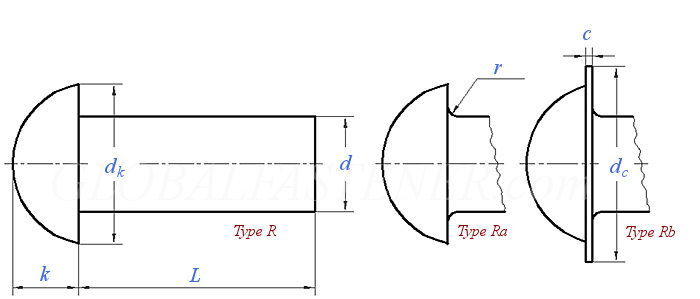

Display drawing:

法国NF E27-153 - 1952 NF27-153 27-153NF Round Head Rivets
Nominal Diameter
d
0.8 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 7 8 9 10
dk
k
dc
c
1.5 1.8 2.7 3.5 4.5 5.5 6.5 7 8 9 10 11 12 14 16 17
0.6 0.7 1.1 1.5 2 2.5 2.5 3 3.5 4 4 4.5 5 5.5 6 7
/ / / / / / / / / / / / / / / /
/ / / / / / / / / / / / / / / /
Nominal Diameter
d
11 12 14 16 18 20 22 24 27 30 33 36 39 42 45
dk
k
dc
c
19 21 24 28 31 34 38 41 46 51 56 61 66 71 76
8 8 10 11 12 14 16 17 19 21 23 25 27 29 31
24 28 30 34 38 42 46 50 56 62 68 74 80 86 92
0.8 0.8 1 1 1.5 2 2 2 2 2 2.5 2.5 2.5 3 3
