Aerospace - Rivets, Solid, Universal Head, Metallic Material, with or without Surface Treatment

ISO 8280 - 1993

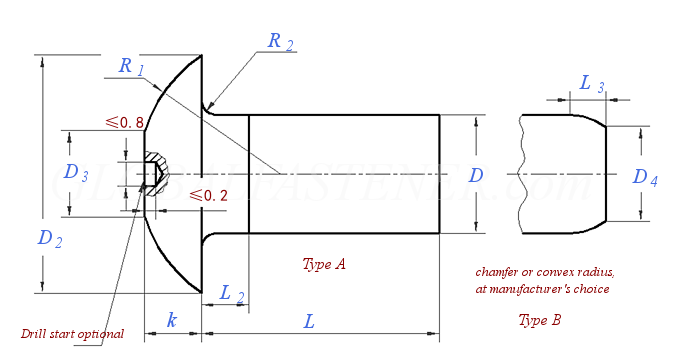

Display drawing:

国际ISO 8280 - 1993 ISO8280 8280ISO Aerospace - Rivets, Solid, Universal Head, Metallic Material, with or without Surface Treatment
Nominal Length L Tips:seclect Nominal Length L and get .
Size code
016 020 025 030 035 040 050 060 080 100
D Nominal Size
max
min
D2 max
min
D3 max
min
D4 max
min
k max
min
L2
L3 max
min
R1
R2 ±0.08
1.6 2 2.5 3 3.5 4 5 6 8 10
1.58 1.98 2.48 2.98 3.47 3.97 4.97 5.97 7.96 9.96
1.52 1.92 2.42 2.92 3.395 3.895 4.895 5.895 7.87 9.87
3.36 4.2 5.25 6.3 7.35 8.4 10.5 12.6 16.8 21
3.04 3.8 4.75 5.7 6.65 7.6 9.5 11.4 15.2 19
1.6 2 2.5 3 3.5 4 5 6 8 10
1.2 1.5 1.8 2.2 2.6 3 3.7 4.5 6 7.5
/ / 2 2.4 2.8 3.2 4 4.8 6.4 8
/ / 1.7 2.1 2.45 2.8 3.5 4.2 5.6 7
0.9 1.1 1.3 1.5 1.8 2 2.4 2.8 3.7 4.5
0.7 0.9 1.1 1.3 1.6 1.8 2.2 2.6 3.5 4.3
1.4 1.4 1.4 1.4 1.6 1.6 2 2 2 2
/ / 0.8 0.9 1.05 1.2 1.5 1.8 2.4 3
/ / 0.5 0.6 0.7 0.8 1 1.2 1.6 2
2 2.4 3 3.7 4.3 4.9 6.1 7.3 9.8 12.2
0.15 0.15 0.15 0.15 0.25 0.25 0.25 0.25 0.25 0.25
Shape of tail end (aluminium and aluminium)
- - - - - - - - - -
Shape of tail end (nickel alloys, corrosion-resistant steels, commercially pure titanium and titanium alloys)
- - - - - - - - - -
①,Drill start optional, only for corrosionresistant steel, nickel alloys, commercially pure titanium, titanium alloys.
