T-Slots

ASME/ANSI B 5.1M (B5JM) - 1985 (R2014)

Display drawing:

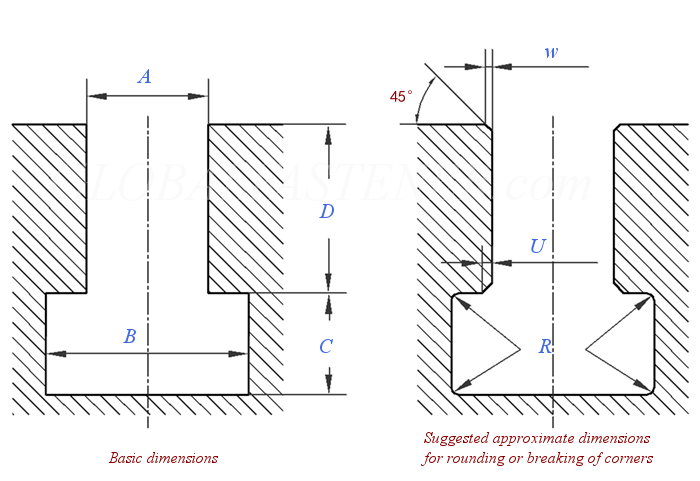

美标ASME/ANSI B5.1M (B5JM) - 1985 (R2014) T-Slots
Size
4 5 6 8 10 12 16 20 24 30 36 42 48
Nominal Size （inch）
A ① mm
inch
B mm min
max
inch min
max
C mm min
max
inch min
max
D mm min
max
inch min
max
R mm max
inch max
U mm max
inch max
W mm max
inch max
/ / 0.250 0.312 0.375 0.500 0.625 0.750 1.000 1.250 1.500 / /
5 6 8 10 12 14 18 22 28 36 42 48 54
/ / 0.282 0.344 0.438 0.562 0.688 0.812 1.082 1.312 1.562 / /
10 11 14.5 16 19 23 30 37 46 56 68 80 90
11 12.5 16 18 21 25 32 40 50 60 72 85 95
/ / 0.500 0.594 0.719 0.906 1.188 1.375 1.750 2.125 2.562 / /
/ / 0.562 0.656 0.781 0.969 1.250 1.469 1.844 2.219 2.656 / /
3 5 7 7 8 9 12 16 20 25 32 36 40
3.5 6 8 8 9 11 14 18 22 28 35 40 44
/ / 0.203 0.234 0.297 0.359 0.453 0.594 0.781 1.031 1.281 / /
/ / 0.234 0.266 0.328 0.391 0.484 0.625 0.828 1.094 1.344 / /
4.5 5 7 9 11 12 16 20 26 33 39 44 50
7 8 11 14 17 19 24 29 36 46 53 59 66
/ / 0.125 0.156 0.219 0.312 0.438 0.562 0.750 1.000 1.250 / /
/ / 0.375 0.438 0.562 0.688 0.875 1.062 1.250 1.562 1.938 / /
0.5 0.5 0.5 0.5 0.5 0.5 0.8 0.8 0.8 0.8 0.8 1.5 1.5
/ / 0.02 0.02 0.02 0.02 0.03 0.03 0.03 0.03 0.03 / /
0.8 0.8 0.8 0.8 0.8 0.8 1.3 1.3 1.3 1.3 1.3 2 2
/ / 0.03 0.03 0.03 0.03 0.05 0.05 0.05 0.05 0.05 / /
0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 1.5 1.5 1.5 2.5 2.5
/ / 0.02 0.03 0.03 0.03 0.03 0.03 0.06 0.06 0.06 / /
①,Throat dimensions are basic. When slots are intended to be used for holding only, tolerances can be 0.0 + 0.010 in. or H12 Metric (ISO/R286); when intended for location, tolerance can be 0.0 + 0.001 in. or H8 Metruc  (ISO/R286).
