T-Head Bolts with Double Nips

CNS 4568 - 1981

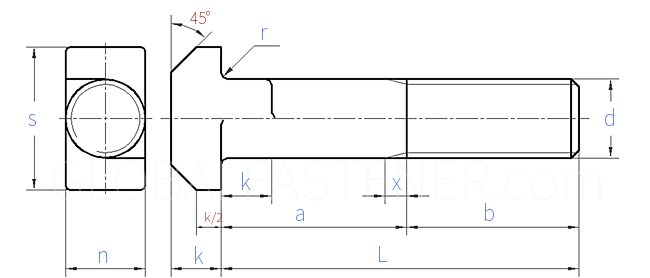

Display drawing:

台湾CNS 4568 - 1981 CNS4568 4568CNS T-Head Bolts with Double Nips
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight Thread length.
Screw Thread
d
M8 M10 M12 M16 M20 M24 M30 M36 M42 M48 M56 M64 M72 M80
P Pitch
b L≤120
120＜L≤200
L＞200
a
k
n
s
r
1.25 1.5 1.75 2 2.5 3 3.5 4 4.5 5 5.5 6 6 6
22 26 30 38 46 54 66 78 90 102 / / / /
28 32 36 44 52 60 72 84 96 108 124 130 156 172
41 45 59 57 65 73 85 97 109 121 137 143 169 185
10 15 19 25 31 37 43 55 60 72 83 95 105 115
5.5 7 8 10.5 13 15 19 23 26 30 35 40 45 50
8 10 12 16 20 24 30 36 42 48 56 64 72 80
18 21 26 30 36 43 54 66 80 88 102 115 128 140
0.5 0.5 1 1 1 1.6 1.6 2 2 2 3 3 4 4
Weight of per 1000 steel products(≈kg)
- - - - - - - - - - - - - -
