Click Specification

Mushroom Head Anchor Screws With Metric ISO Thread - Class C

DIN 25193 - 2003

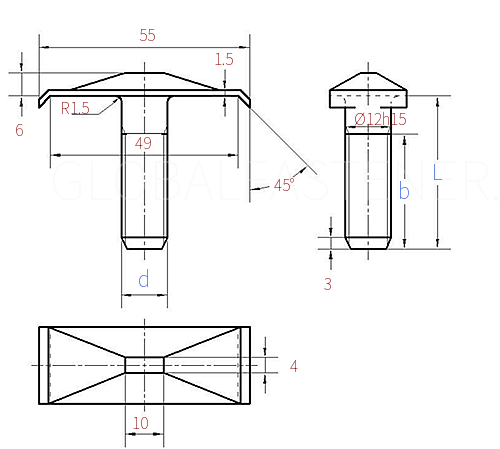

Display drawing:

德标DIN 25193 - 2003 DIN25193 25193DIN Mushroom Head Anchor Screws With Metric ISO Thread - Class C
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Screw Thread
d
M12
P
d
b
1.75
12
30
Weight of per 1000 steel products(≈kg)
-
