Click Specification

Unit:mm

Hexagon Lock-nuts, Product Grade B

GOST 5916 - 1970

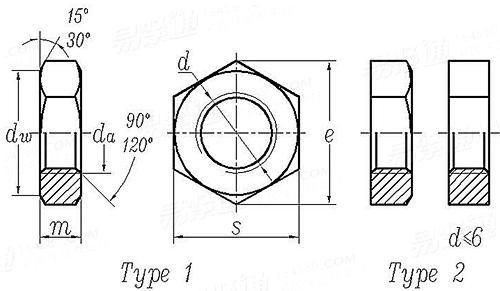

Display drawing:

俄标GOST 5916 - 1970 GOST5916 5916GOST Hexagon Lock-nuts, Product Grade B
俄标GOST 5916 - 1970 GOST5916 5916GOST Hexagon Lock-nuts, Product Grade B
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Thread Size
d
(1) (1.4) 1.6 2 2.5 3 (3.5) 4 5 6 8 10
P pitch Coarse thread
Fine thread
s
e min
da max
min
dw min
m max=nominal size
min
per 1000 units≈kg
0.25 0.3 0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5
/ / / / / / / / / / 1 1.25
3.2 3.2 3.2 4 5 5.5 6 7 8 10 13 16
3.3 3.3 3.3 4.2 5.3 5.9 6.4 7.5 8.6 10.9 14.2 17.6
1.15 1.61 1.84 2.3 2.9 3.45 4 4.6 5.75 6.75 8.75 10.8
1 1.4 1.6 2 2.5 3 3.5 4 5 6 8 10
2.9 2.9 2.9 3.6 4.5 5 5.4 6.3 7.2 9 11.7 14.5
0.8 1 1 1.2 1.6 1.8 2 2.2 2.7 3.2 4 5
0.7 0.9 0.9 1.1 1.5 1.7 1.9 2.1 2.6 3.08 3.88 4.88
0.037 0.038 0.057 0.074 0.163 0.218 0.276 0.431 0.656 1.254 2.667 5.02
Thread Size
d
12 (14) 16 (18) 20 (22) 24 (27) 30 36 42 48
P pitch Coarse thread
Fine thread
s
e min
da max
min
dw min
m max=nominal size
min
per 1000 units≈kg
1.75 2 2 2.5 2.5 2.5 3 3 3.5 4 4.5 5
1.25 1.5 1.5 1.5 1.5 1.5 2 2 2 3 3 3
18 21 24 27 30 34 36 41 46 55 65 75
19.9 22.8 26.2 29.6 33 37.3 39.6 45.2 50.9 60.8 71.3 82.6
13 15.1 17.3 19.4 21.6 23.8 25.9 29.2 32.4 38.9 45.4 51.8
12 14 16 18 20 22 24 27 30 36 42 48
16.5 19.2 22 24.8 27.7 31.4 33.2 38 42.7 51.1 59.9 69.4
6 7 8 9 10 11 12 13.5 15 18 21 24
5.88 6.85 7.85 8.85 9.85 10.82 11.82 13.32 14.82 17.82 20.79 23.79
6.84 11.67 17.68 25.98 35.53 50.01 59.79 88.06 127.15 216.99 360.63 558.12
