Click Specification

Unit:mm

Taper‑Shaft End Nuts

YJT 3035

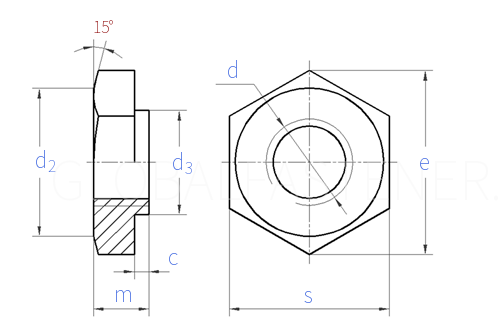

Display drawing:

标准YJT 3035 YJT3035 3035YJT Taper‑Shaft End Nuts
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Thread Size
d
M24
×2 		M30
×2 		M36
×3 		M42
×3 		M48
×3 		M56
×4 		M64
×4 		M48
×2 		M80
×4 		M90
×4 		M72
×4 		M55
×2
d2 min
d3 max
c
m
s
e
per 1000 units≈kg
42.7 51.1 51.1 59.9 69.4 78.7 88.7 69.4 107.2 121.1 100 78.7
30 36 42 48 56 64 72 56 90 100 80 64
29.5 35.5 41.5 47.5 55.5 63.5 71.5 55.5 89.5 99.5 79.5 63.5
5 5 5 5 6 6 6 6 6 6 6 6
16 19 19 25 25 28 28 25 32 34 30 28
46 55 55 65 75 85 95 75 115 125 105 85
53 63.5 63.5 75 86.5 98 110 86.5 127.5 144.3 121.4 98
128 223 176 372 486 686 842 486 716 812 958 686
