Hex Flat Jam Nuts [Table3] (SAE J995, ASTM A563, F594, F467)

ASME B 18.2.2 (T3-HFJ) - 2010

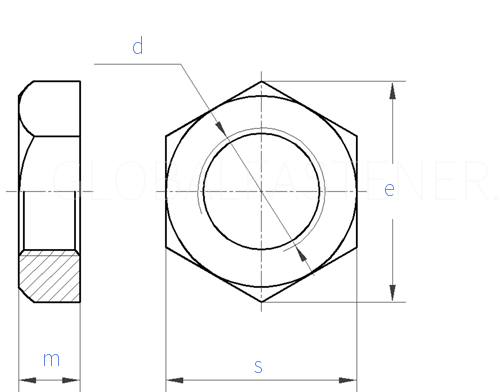

Display drawing:

美标ASME B18.2.2 (T3-HFJ) - 2010 ASME18.2. Hex Flat Jam Nuts [Table3] (SAE J995, ASTM A563, F594, F467)
Download CAD Model*
Download CAD Model*

 *Models with different eras.

Screw Thread
d
1-1/8 1-1/4 1-3/8 1-1/2
PP UNC
s max
min
e max
min
m max
min
7 7 6 6
1.688 1.875 2.062 2.250
1.631 1.812 1.994 2.175
1.949 2.165 2.382 2.598
1.859 2.066 2.273 2.480
0.655 0.782 0.846 0.911
0.595 0.718 0.778 0.839

Alternative history

ASME B 18.2.2T3-HFJ - 2010 ASME/ANSI B 18.2.2T4 - 2010 ASME B 18.2.2T4 - 2015 ASME B 18.2.2T5 - 2022
