Flush Self-Clinching Nuts

Self-Clinching F F4

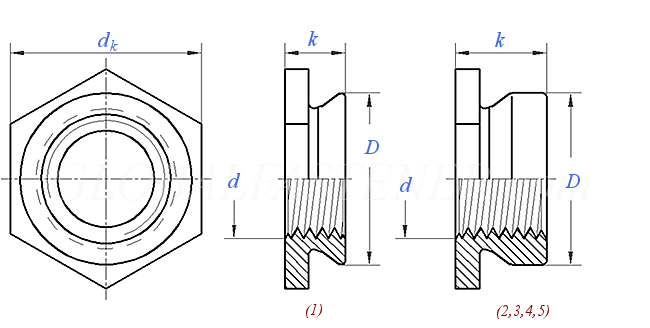

Display drawing:

压铆件Self-Clinching F F4 Self-ClinchingF F Flush Self-Clinching Nuts
Screw Thread
d
2# 2# 4# 4# 6# 6# 8# 8# 10# 10# 1/4 1/4 1/4
P
PP
k max
D max
dk nominal size
Series Shank Code
Sheet Thickness min
Recommend Hole Size min=nominal size
max
Code 300 stainless steel
hardened stainless steel
- - - - - - - - - - - - -
56 56 40 40 32 32 32 32 32 32 20 20 20
0.060 0.090 0.060 0.090 0.060 0.090 0.060 0.090 0.060 0.090 0.120 0.151 0.182
0.171 0.171 0.171 0.171 0.212 0.212 0.289 0.289 0.311 0.311 0.343 0.343 0.343
0.188 0.188 0.188 0.188 0.250 0.250 0.312 0.312 0.343 0.343 0.375 0.375 0.375
1 2 1 2 1 2 1 2 1 2 3 4 5
0.060~0.091 ≥0.091 0.060~0.091 ≥0.091 0.060~0.091 ≥0.091 0.060~0.091 ≥0.091 0.060~0.091 ≥0.091 0.125~0.156 0.156~0.187 ≥0.187
0.172 0.172 0.172 0.172 0.213 0.213 0.290 0.290 0.312 0.312 0.344 0.344 0.344
0.175 0.175 0.175 0.175 0.216 0.216 0.293 0.293 0.315 0.315 0.347 0.347 0.347
F F F F F F F F F F F F F
F4 F4 F4 F4 F4 F4 F4 F4 F4 F4 F4 F4 F4
Screw Thread
d
M2 M2 M2.5 M2.5 M3 M3 M4 M4 M5 M5 M6 M6 M6
P
PP
k max
D max
dk nominal size
Series Shank Code
Sheet Thickness min
Recommend Hole Size min=nominal size
max
Code 300 stainless steel
hardened stainless steel
0.4 0.4 0.45 0.45 0.5 0.5 0.7 0.7 0.8 0.8 1 1 1
- - - - - - - - - - - - -
1.53 2.3 1.53 2.3 1.53 2.3 1.53 2.3 1.53 2.3 3.05 3.84 4.63
4.35 4.35 4.35 4.35 4.35 4.35 7.35 7.35 7.9 7.9 8.72 8.72 8.72
4.8 4.8 4.8 4.8 4.8 4.8 7.9 7.9 8.7 8.7 9.5 9.5 9.5
1 2 1 2 1 2 1 2 1 2 3 4 5
1.53~2.32 ≥2.32 1.53~2.32 ≥2.32 1.53~2.32 ≥2.32 1.53~2.32 ≥2.32 1.53~2.32 ≥2.32 3.18~3.96 3.96~4.75 ≥4.75
4.37 4.37 4.37 4.37 4.37 4.37 7.37 7.37 7.92 7.92 8.74 8.74 8.74
4.45 4.45 4.45 4.45 4.45 4.45 7.45 7.45 8 8 8.82 8.82 8.82
F F F F F F F F F F F F F
F4 F4 F4 F4 F4 F4 F4 F4 F4 F4 F4 F4 F4
