Click Specification

Unit:mm

Flanging Self Clinch Nut

YJT 8049

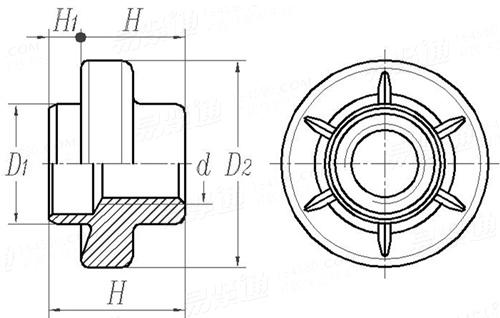

Display drawing:

标准YJT 8049 YJT8049 8049YJT Flanging Self Clinch Nut
Nominal Diameter
D
M6 M8 M10 M12
D1 ±0.3
D2 ±0.5
H ±0.3
H1 ±0.5
H2 ±0.5
Sheet Thickness
9.7 12.8 15 16.1
16 21 26 28
7.6 9 11 13.1
2.9 3.4 4.1 4.1
10.4 12.4 15.1 17.2
0.55~3.00 0.6~3.00 0.75~3.00 1.00~3.5
Send Inquiry
