Click Specification

Same specifications, different dimensions for other parts.

Unit:mm/inch

Floating Self-clinching Nuts, Non-Locking

Self-Clinching AS AC A4

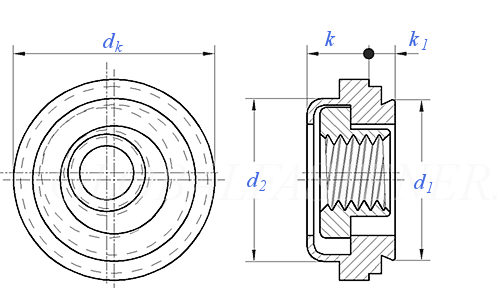

Display drawing:

压铆件Self-Clinching AS AC A4 Self-Clinchin Floating Self-clinching Nuts, Non-Locking
For Nominal Thread Diameter
4# 4# 6# 6# 8# 8# 10# 10# 10# 10#
P
PP
k1 max
d1 max
d2 max
dk Nominal Size
max
min
k max
Recommend Hole Size min=nominal size
max
Sheet Thickness min
Code steel
300 series stainless
400 series stainless
- - - - - - - - - -
40 40 32 32 32 32 24 24 32 32
0.038 0.054 0.038 0.054 0.038 0.054 0.038 0.054 0.038 0.054
0.289 0.289 0.327 0.327 0.367 0.367 0.405 0.405 0.405 0.405
0.290 0.290 0.335 0.335 0.365 0.365 0.405 0.405 0.405 0.405
0.360 0.360 0.390 0.390 0.440 0.440 0.470 0.470 0.470 0.470
0.375 0.375 0.405 0.405 0.455 0.455 0.485 0.485 0.485 0.485
0.345 0.345 0.375 0.375 0.425 0.425 0.455 0.455 0.455 0.455
0.130 0.130 0.130 0.130 0.130 0.130 0.170 0.170 0.170 0.170
0.290 0.290 0.328 0.328 0.368 0.368 0.406 0.406 0.406 0.406
0.293 0.293 0.331 0.331 0.371 0.371 0.409 0.409 0.409 0.409
0.038 0.054 0.038 0.054 0.038 0.054 0.038 0.054 0.038 0.054
AS AS AS AS AS AS AS AS AS AS
AC AC AC AC AC AC AC AC AC AC
A4 / A4 / A4 / A4 / A4 /
For Nominal Thread Diameter
1/4 1/4 M3 M3 M4 M4 M5 M5 M6
P
PP
k1 max
d1 max
d2 max
dk Nominal Size
max
min
k max
Recommend Hole Size min=nominal size
max
Sheet Thickness min
Code steel
300 series stainless
400 series stainless
- - 0.5 0.5 0.7 0.7 0.8 0.8 1
20 28 - - - - - - -
0.054 0.054 0.97 1.38 0.97 1.38 0.97 1.38 1.38
0.514 0.514 7.35 7.35 9.33 9.33 10.29 10.29 13.06
0.510 0.510 7.37 7.37 9.28 9.28 10.29 10.29 12.96
0.600 0.600 9.14 9.14 11.18 11.18 11.94 11.94 15.24
0.615 0.615 9.52 9.52 11.56 11.56 12.32 12.32 15.62
0.585 0.585 8.76 8.76 10.8 10.8 11.56 11.56 14.86
0.210 0.210 3.31 3.31 3.31 3.31 4.32 4.32 5.34
0.515 0.515 7.37 7.37 9.35 9.35 10.31 10.31 13.08
0.518 0.518 7.45 7.45 9.43 9.43 10.39 10.39 13.16
0.054 0.054 0.97 1.38 0.97 1.38 0.97 1.38 1.38
AS AS AS AS AS AS AS AS AS
AC AC AC AC AC AC AC AC AC
/ / A4 / A4 / A4 / /
①,Float - 0.015"/0.38mm minimum, in all directions from center, 0.030"/0.76mm total.
