Click Specification

Unit:mm/inch

Self-Clinching Locknuts

Self-Clinching PL PLC

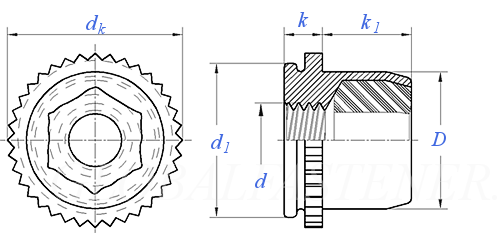

Display drawing:

压铆件Self-Clinching PL PLC Self-ClinchingP Self-Clinching Locknuts

Thread Size
d

4#

6#

8#

10#

M3

M4

M5

P
PP
k	max
d₁	max
D	max
d_k	max
k₁	max
Sheet Thickness	min
Recommend Hole Size	min=nominal size
Recommend Hole Size	max
Code	steel
Code	stainless steel

-	-	-	-	0.5	0.7	0.8
40	32	32	32	-	-	-
0.06	0.06	0.06	0.06	1.53	1.53	1.53
0.233	0.264	0.296	0.311	5.98	7.48	7.98
0.215	0.246	0.278	0.293	5.52	7.01	7.52
0.274	0.305	0.338	0.353	7.01	8.54	9
0.130	0.130	0.155	0.165	3.56	4.2	4.45
0.040~0.070	0.040~0.070	0.040~0.070	0.040~0.070	1~1.78	1~1.78	1~1.78
0.234	0.265	0.297	0.312	6	7.5	8
0.237	0.268	0.300	0.315	6.08	7.58	8.08
PL	PL	PL	PL	PL	PL	PL
PLC	PLC	PLC	PLC	PLC	PLC	PLC

①,Nylon locking element:
Blue identifier for unified fasteners, Black identifies metric fasteners.
