T-head Anchor Bolt

JB /ZQ 4362 - 1997

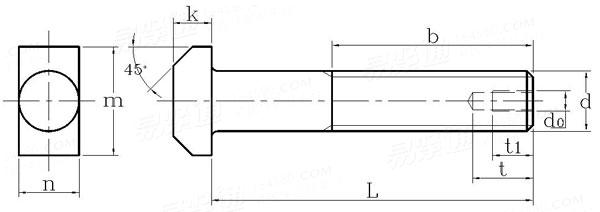

Display drawing:

机械行业JB /ZQ4362 - 1997 JB4362 4362JB T-head Anchor Bolt
Download CAD Model*

 *Models with different eras.

Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Thread Size
d
M24 M30 M36 M42 M48 M56 M64 M72 M80 M90 M100 M110 M125 M140 M160
P
b
d0
k
m
n
t max
t1 max
per unit≈kg L≈1000mm
Every 100mm increase in mass
3 3.5 4 4.5 5 5.5 6 6 6 6 6 6 6 6 6
100 120 160 180 210 250 280 300 320 360 400 440 500 560 620
/ / M12 M12 M12 M16 M16 M16 M20 M20 M20 M20 M20 M20 M20
15 19 23 26 30 35 40 45 50 55 62 67 75 85 90
48 56 66 80 88 102 112 122 140 155 170 190 215 240 270
24 30 36 42 48 56 64 72 80 90 100 110 125 140 160
/ / 31 31 31 39 39 39 47 47 47 47 47 47 47
/ / 18 18 18 24 24 24 29 29 29 29 29 29 29
3.66 5.77 8.38 11.5 15.1 20.7 27.4 34.9 43.5 55.4 69.2 84.6 110.7 141 185.7
0.35 0.56 0.8 1.08 1.42 1.9 2.5 3.2 3.9 5 6.2 7.5 9.6 12.1 15.8

Alternative history

JB /ZQ 4362 - 1997 JB /ZQ 4362 - 2006
