Foundation Bolts

CNS 4426 - 1979

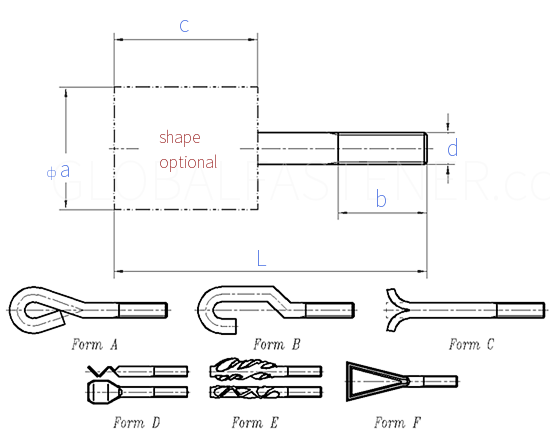

Display drawing:

台湾CNS 4426 - 1979 CNS4426 4426CNS Foundation Bolts
Screw Thread
d
M8 M10 M12 M16 M20 M24 M30 M36 M42 M48 M56 M64 M72×6
b
a max
c max
20 25 30 40 50 60 75 90 105 120 140 160 180
25 32 40 55 65 80 100 120 140 160 185 210 250
55 55 70 90 110 130 160 190 230 260 290 340 370
