Click Specification

Unit:mm

Rag Bolts

NF E 27-811 - 1970

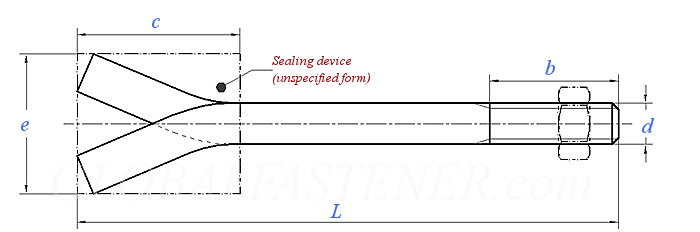

Display drawing:

法国NF E27-811 - 1970 NF27-811 27-811NF Rag Bolts
Nominal Length L Tips:seclect Nominal Length L and get Thread length.
Thread Size
d
6 8 10 12 14 16 18 20 22 24 27
P pitch
e min
max
c max
1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3 3
12 16 20 24 28 32 36 40 44 48 54
18 24 30 36 42 48 54 60 66 72 81
30 40 50 60 70 80 90 100 110 120 135
Length of Thread b
- - - - - - - - - - -
