Click Specification

(Non-preferred) dimensions in parentheses.

Unit:mm

Wing Screws - Stamping Type

JIS B 1184 - 1994

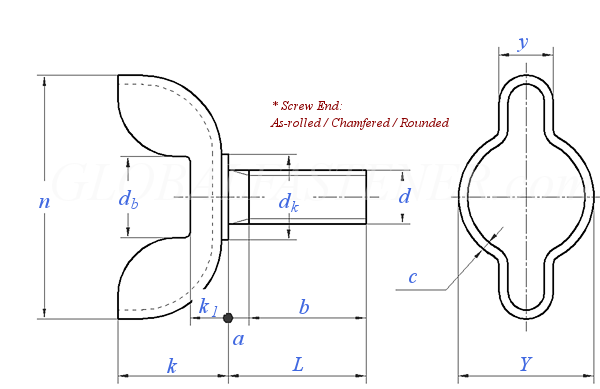

Display drawing:

日标JIS B1184 - 1994 JIS1184 1184JIS Wing Screws - Stamping Type
Thread Size
d
M4 M5 M6 M8 M10
dk min
Y max
db ≈
k1 min
n Nominal Size
max
min
k Nominal Size
max
min
y max
c ≈
7 8.5 10.5 13 16
12 13 15 17 20
7 8 9 11 13
2.5 3 3.5 5 6
21 23 27 31 36
22 24 28 32.5 37.5
20 22 26 29.5 34.5
8.5 10.5 11.5 15 18
9.5 12 13 16.5 19.5
7.5 9 10 13.5 16.5
5 5.5 6 7 8
0.8 1 1 1.2 1.2
①,α ≈ 3P.

Alternative history

JIS B 1184 - 1994 JIS B 1184 - 2010
