Click Specification

(Non-preferred) dimensions in parentheses.

Unit:mm

Wing Screws-Square Wing

JIS B 1184 - 2010

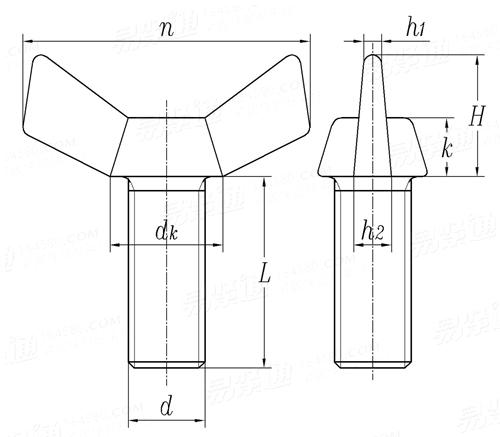

Display drawing:

日标JIS B1184 - 2010 JIS1184 1184JIS Wing Screws-Square Wing
Thread Size
d
M3 M4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20
dk min
k min
n Nominal Size
max
min
H Nominal Size
max
min
h1 max
h2 max
6.5 6.5 8 10 13 16 20 20 27 27 27
3 3 4 4.5 6 7.5 9 9 12 12 12
17 17 21 27 31 36 48 48 68 68 68
18.5 18.5 22.5 28.5 33 38 50 50 70 70 70
15.5 15.5 19.5 25.5 29 34 46 46 66 66 66
9 9 11 13 16 18 23 23 35 35 35
10.5 10.5 12.5 14.5 17.5 19.5 24.5 24.5 37 37 37
7.5 7.5 9.5 11.5 14.5 16.5 21.5 21.5 33 33 33
3 3 3.5 4 4.5 5.5 7 7 8 8 8
4 4 4.5 5 5.5 6.5 8 8 9 9 9

Alternative history

JIS B 1184 - 1994 JIS B 1184 - 2010
