Wing Screws, Small Type

CNS 4489 - 1981

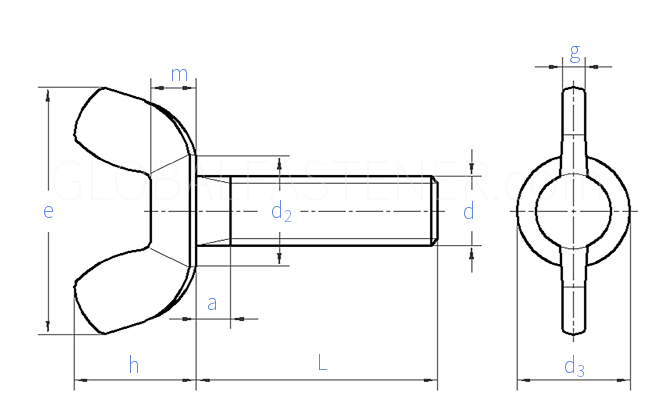

Display drawing:

台湾CNS 4489 - 1981 CNS4489 4489CNS Wing Screws, Small Type
Thread Size
d
M3 M4 M5 M6 M8 M10 M12
d2
d3
e
g
h
m
10 10 11 11 17 20.5 20.5
6.5 6.5 8 7.5 12 16 16
22 22 25 27 37 53 53
3 3 3.5 3.5 5 5.5 5.5
11 11 12 14 17.5 24 24
4.5 4.5 5 6 7 9.5 9.5
