Click Specification

Unit:mm

Slotted Pan Head Screws

GB 67 - 1985

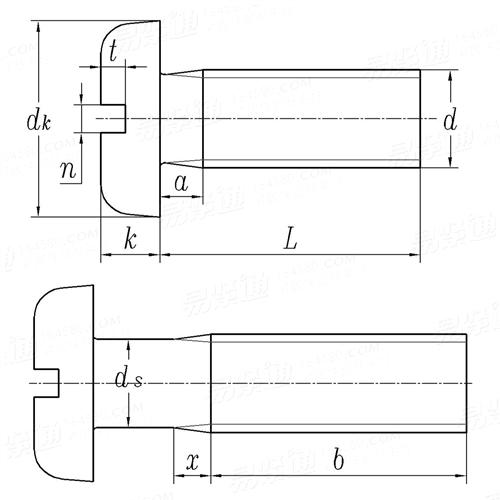

Display drawing:

国标GB 67 - 1985 GB67 67GB Slotted Pan Head Screws
Download CAD Model*

 *Models with different eras.

Nominal Length L Tips:seclect Nominal Length L and get Thread length.
Thread Size
d
M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10
P Pitch
a max
dk max
min
k max
min
n Nominal Size
min
max
t min
x max
0.35 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5
0.7 0.8 0.9 1 1.4 1.6 2 2.5 3
3.2 4 5 5.6 8 9.5 12 16 20
2.9 3.7 4.7 5.3 7.64 9.14 11.57 15.57 19.48
1 1.3 1.5 1.8 2.4 3 3.6 4.8 6
0.85 1.1 1.3 1.6 2.2 2.8 3.3 4.5 5.7
0.4 0.5 0.6 0.8 1.2 1.2 1.6 2 2.5
0.46 0.56 0.66 0.86 1.26 1.26 1.66 2.06 2.56
0.6 0.7 0.8 1 1.51 1.51 1.91 2.31 2.81
0.35 0.5 0.6 0.7 1 1.2 1.4 1.9 2.4
0.9 1 1.1 1.25 1.75 2 2.5 3.2 3.8
Length of Thread b
- - - - - - - - -

Alternative history

GB /T 67 - 1985 GB /T 67 - 2000 GB /T 67 - 2008 GB /T 67 - 2016
