Click Specification

(Non-preferred) dimensions in parentheses.

Spectacle Frames - Slotted Pan Head Screws

JIS B 1119 (1P) - 1986

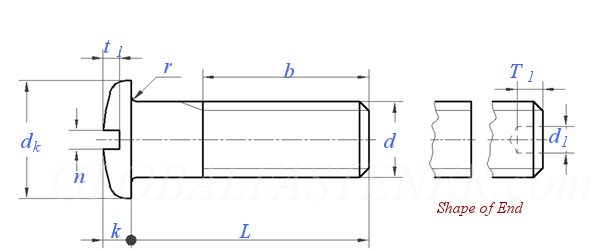

Display drawing:

Screw Thread
d

M1
×1.5

M1
×1.8

M1.2
×1.8

M1.2
×2

M1.4
×1.8

M1.4
×2

M1.4
×2.5

M1.4
×2.8

M1.6
×2.5

M1.6
×2.8

(M1.7)
×2.5

(M1.7)
×2.8

M2
×3

P	Pitch
d_k	max
	min
k	max
	min
n	max
	min
t₁	Nominal Size
	max
	min
r	max
d₁
T₁

0.25	0.25	0.25	0.25	0.3	0.3	0.3	0.3	0.35	0.35	0.35	0.35	0.4
1.5	1.8	1.8	2	1.8	2	2.5	2.8	2.5	2.8	2.5	2.8	3
1.36	1.66	1.66	1.86	1.66	1.86	2.36	2.66	2.36	2.66	2.36	2.66	2.86
0.67	0.67	0.67	0.67	0.67	0.67	0.67	0.67	0.67	0.67	0.67	0.67	0.67
0.53	0.53	0.53	0.53	0.53	0.53	0.53	0.53	0.53	0.53	0.53	0.53	0.53
0.4	0.4	0.4	0.48	0.4	0.48	0.48	0.48	0.48	0.48	0.48	0.48	0.48
0.32	0.32	0.32	0.4	0.32	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
0.35	0.35	0.35	0.35	0.35	0.35	0.35	0.35	0.35	0.35	0.35	0.35	0.35
0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05
/	/	/	/	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	/
/	/	/	/	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	/

①,The threaded length (b) shall be as agreed upon between the parties concerned on delivery. However, unless otherwise designated specially, it shall be thread-worked till underhead and the incomplete threaded length shall be not more than 1.5 ridges.
