Click Specification

Unit:mm

Slotted Raised Pan Head Screws for Precision Instruments

CNS 9681 - 1988

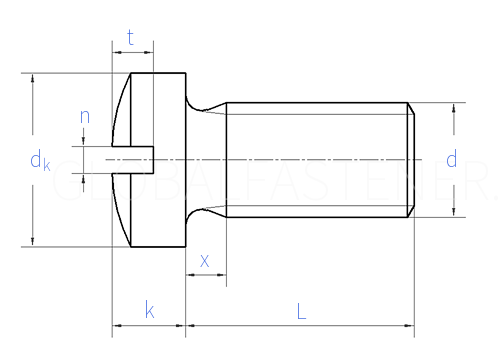

Display drawing:

台湾CNS 9681 - 1988 CNS9681 9681CNS Slotted Raised Pan Head Screws for Precision Instruments
Screw Thread
d
M1.2
A型 		M1.4
A型 		M1.6
A型 		M1.7
A型 		M2
A型 		M2.2
A型 		M2.3
A型 		M2.5
A型 		M2.6
A型 		M1.2
B型 		M1.4
B型 		M1.6
B型 		M1.7
B型 		M2
B型
dk Nominal Size
min
max
k Nominal Size
min
max
n min=nominal size
max
t Nominal Size
min
max
1.8 2 2.3 2.5 3 3.3 3.5 3.8 4 1.8 2 2.3 2.5 3
1.7 1.9 2.2 2.4 2.8 3.1 3.3 3.6 3.8 1.7 1.9 2.2 2.4 2.8
1.85 2.05 2.35 2.55 3.05 3.35 3.55 3.85 4.05 1.85 2.05 2.35 2.55 3.05
0.6 0.6 0.7 0.7 0.8 0.9 0.9 1 1 0.7 0.8 0.8 0.9 1
0.5 0.5 0.6 0.6 0.65 0.75 0.75 0.85 0.85 0.65 0.75 0.75 0.85 0.92
0.7 0.7 0.8 0.8 0.95 1.05 1.05 1.15 1.15 0.75 0.85 0.85 0.95 1.08
0.32 0.32 0.32 0.32 0.4 0.4 0.4 0.6 0.6 0.32 0.32 0.32 0.32 0.4
0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.7 0.7 0.4 0.4 0.4 0.4 0.5
0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.5 0.6 0.6 0.7 0.7
0.35 0.35 0.45 0.45 0.42 0.52 0.52 0.52 0.52 0.45 0.55 0.55 0.65 0.62
0.45 0.45 0.55 0.55 0.58 0.68 0.68 0.68 0.68 0.55 0.65 0.65 0.75 0.78
Screw Thread
d
M2.2
B型 		M2.3
B型 		M2.5
B型 		M2.6
B型 		M1
C型 		M1.2
C型 		M1.4
C型 		M1.6
C型 		M1.7
C型 		M2
C型 		M2.2
C型 		M2.3
C型 		M2.5
C型 		M2.6
C型
dk Nominal Size
min
max
k Nominal Size
min
max
n min=nominal size
max
t Nominal Size
min
max
3.3 3.5 3.8 4 1.8 2 2.5 2.8 3 3.5 3.8 4 4.3 4.5
3.1 3.3 3.6 3.8 1.7 1.9 2.4 2.7 2.9 3.3 3.6 3.8 4.1 4.3
3.35 3.55 3.85 4.05 1.85 2.05 2.55 2.85 3.05 3.55 3.85 4.05 4.35 4.55
1 1.1 1.2 1.2 0.5 0.6 0.6 0.6 0.7 0.7 0.8 0.8 0.8 0.8
0.92 1.02 1.12 1.12 0.45 0.55 0.55 0.55 0.65 0.62 0.72 0.72 0.72 0.72
1.08 1.18 1.28 1.28 0.55 0.65 0.65 0.65 0.75 0.78 0.88 0.88 0.88 0.88
0.4 0.4 0.6 0.6 0.32 0.32 0.32 0.32 0.32 0.4 0.4 0.4 0.6 0.6
0.5 0.5 0.7 0.7 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.7 0.7
0.8 0.8 0.9 0.9 0.4 0.4 0.5 0.5 0.5 0.6 0.6 0.6 0.7 0.7
0.72 0.72 0.82 0.82 0.35 0.35 0.45 0.45 0.45 0.52 0.52 0.52 0.62 0.62
0.88 0.88 0.98 0.98 0.45 0.45 0.55 0.55 0.55 0.68 0.68 0.68 0.78 0.78
