Click Specification

Unit:mm

Cover Bolts Type A

CNS 4574 - 1981

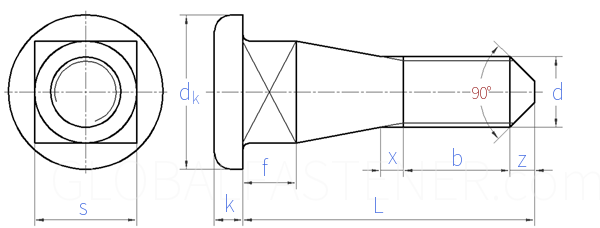

Display drawing:

台湾CNS 4574 - 1981 CNS4574 4574CNS Cover Bolts Type A
Calculate weight and price. Weight 1000 pcs : kg x $ per kg = $ 1000 pcs
Default density g/cm3
×

Choose materials based on density.(g/cm3)

  • Carbon Steel 7.85
  • Stainless Steel 8.1
  • Stainless Steel 7.95
  • Stainless Steel 7.7
  • Titanium Alloy 4.5
  • Aluminum Alloy 2.8
  • Copper 8.89


Select here or enter material density on the calculation page.
Nominal Length L Tips:seclect Nominal Length L and get Weight .
Screw Thread
d
M10 M12 M16
P
s
b
dk
f
k
1.5 1.75 2
11 13 17
22 24 30
20 25 30
7 9 13
4 5 7
Weight of per 1000 steel products(≈kg)
- - -
